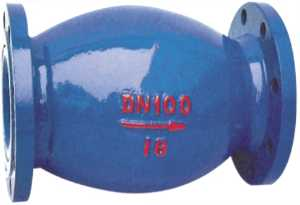

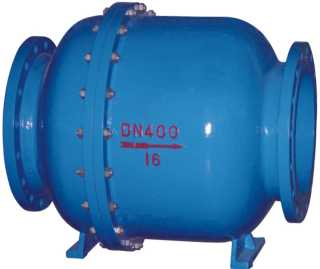

MicroResistance Ball Check Valves
HQ44X-10、16 HQ45X-10、16

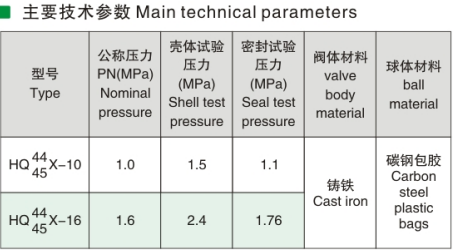

微阻球形止回阀 MicroResistance Ball Check Valves

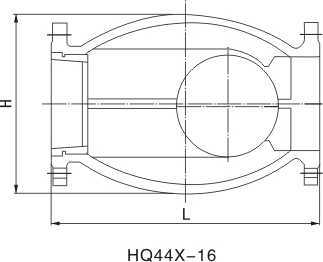

| HQ44X-10、16外型尺寸 Installation dimensions | |||||||||
| 公称通径 Nominal diameter | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
| L(mm) | 250 | 280 | 310 | 350 | 400 | 450 | 550 | 650 | 750 |
| H(mm) | 180 | 210 | 225 | 245 | 280 | 320 | 380 | 450 | 510 |
| 连接尺寸 Connection size | 法兰连接尺寸Flange connection size PN1.0MPa按GB4216.4-84； PN1.6MPa按GB4216.5-84标准standard | ||||||||

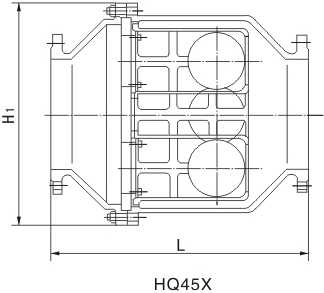

| HQ45X-10、16外型尺寸 Installation dimensions | ||||||||||||
| 公称通径 Nominal diameter | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 | 800 | 900 | 1000 |
| L(mm) | 550 | 650 | 750 | 850 | 950 | 1050 | 1150 | 1350 | 1450 | 1650 | 1900 | 2100 |
| H(mm) | 510 | 570 | 640 | 715 | 815 | 825 | 980 | 1155 | 1260 | 1350 | 1660 | 1700 |
| 连接尺寸 Connection size | 法兰连接尺寸Flange connection size PN1.0MPa按GB4216.4-84； PN1.6MPa按GB4216.5-84标准standard | |||||||||||
