Second Generation Of Reduced Pressure Regulator Valve

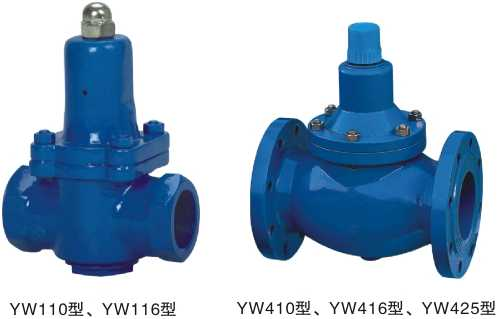

YW410-10 YW416-16 YW425-25 YW110-10 YW116-16
第二代减压稳定阀 Second Generation Of Reduced Pressure Regulator Valve
| 型号Type | 尺寸size ( mm ) | ||||||||||||||||
| YW410-10 YW416-16 YW425-25 |
DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 |
| L | 108 | 117 | 127 | 140 | 165 | 203 | 216 | 241 | 292 | 330 | 356 | 495 | 622 | 398 | 787 | 914 | |
| H | 105 | 105 | 115 | 120 | 165 | 165 | 190 | 250 | 274 | 350 | 368 | 395 | 433 | 475 | 520 | 570 | |

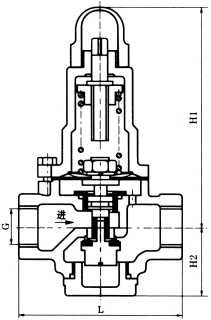

| YW110-10 YW116-16 | 管螺纹G | ½ | ¼ | 1 | 1¼ | 1½ | 2 | ||||||||||
| L | 100 | 100 | 120 | 150 | 150 | 180 | |||||||||||
| H1 | 135 | 135 | 152 | 180 | 196 | 201 | |||||||||||
| H2 | 41 | 41 | 45 | 53 | 56 | 58 | |||||||||||
