Water Supply Rotary Valve、self balancing valve
Water Supply Rotary Valve、self balancing valve
ZL47F-16
PRODUCT DETAILS

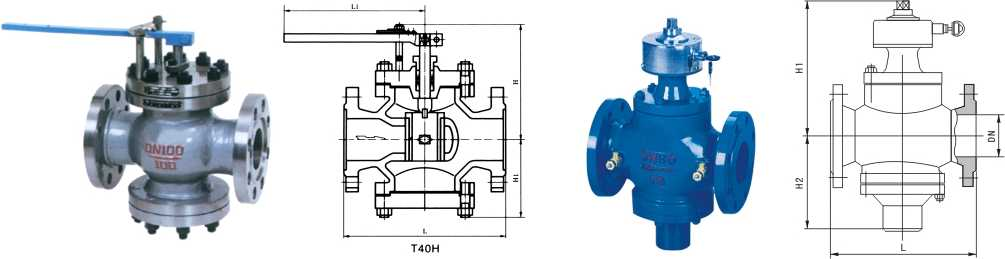

给水回转调节阀 Water Supply Rotary Valve

Water Supply Rotary Valve、self balancing valveWater Supply Rotary Valve、self balancing valve

公称压力(MPa) 尺寸size ( mm )
DN 20 25 32 40 50 65 80 100 125 150 200 250 300
1.6 L 160 180 200 220 250 280 310 350 400 450 500 650 800
L1 140 150 180 200 230 240 270 300 350 380 440 500 650
H 180 200 205 210 230 230 250 250 290 300 325 330 450
H1 90 100 107 113 120 125 140 150 190 205 270 270 330
2.5 L 160 180 200 220 250 280 310 350 400 450 500 650 300
L1 150 160 180 210 245 260 290 320 370 410 480 540 700
H 180 200 205 210 230 240 250 280 290 300 325 330 450
H1 90 100 100 120 120 130 150 150 190 205 270 270 335
4 L 180 200 220 240 270 300 330 380 450 500 550 650 800
L1 150 160 190 210 245 270 300 330 380 420 500 560 720
H 180 200 205 210 230 240 250 290 300 310 335 350 470
H1 90 100 110 113 120 130 150 170 190 210 220 290 360
6.4 L 180 200 220 240 270 300 330 380 450 500 550 650 800
L1 160 170 200 230 260 290 320 350 400 440 530 600 760
H 185 210 220 225 250 250 260 300 310 320 340 360 480
H1 100 110 110 135 35 140 160 180 200 220 230 300 370
10.0 L 180 200 300 315 380 400 450
L1 180 200 280 380 400 414
H 150 165 240 270 280 360
H1 105 115 130 190 190 250

ZL47F-16型自力式平衡阀 ZL47F-16 self balancing valve

Water Supply Rotary Valve、self balancing valve

DN 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
L 110 110 115 160 200 215 230 275 290 310 350 430 520 635 670
H1 122 122 137 182 191 197 205 259 268 334 357 407 452 486 555
H2 70 70 74 91 147 147 154 181 211 227 260 303 367 430 495
