Rubber Lined Diaphragm Valve
DN25-DN400

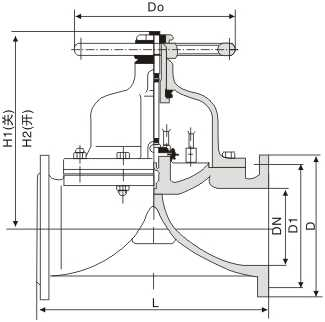

衬胶隔膜阀 Rubber Lined Diaphragm Valve
| 公称通径DN | 公称压力CL (Mpa) |
工作压力W.P(Mpa) | L | D | D1 | Z-Φd | H1 | H2 | D0 | 重量 (kg) |
| 25 | 1.0 | 145 | 115 | 85 | 4-Φ14 | 121 | 135 | 120 | 4.5 | |
| 32 | 160 | 135 | 100 | 4-Φ18 | 132 | 150 | 120 | 7 | ||
| 40 | 180 | 145 | 110 | 4-Φ18 | 156 | 176 | 140 | 9 | ||
| 50 | 210 | 160 | 125 | 4-Φ18 | 169 | 195 | 140 | 12.5 | ||
| 65 | 1.0MPa | 250 | 180 | 145 | 4-Φ18 | 200 | 236 | 200 | 19 | |
| 80 | 300 | 195 | 160 | 4-Φ18 | 216 | 256 | 200 | 25.5 | ||
| 100 | 350 | 215 | 180 | 8-Φ18 | 270 | 322 | 280 | 40 | ||
| 125 | 400 | 245 | 210 | 8-Φ18 | 338 | 406 | 320 | 62 | ||
| 150 | 460 | 280 | 240 | 8-Φ23 | 384 | 464 | 320 | 80.5 | ||
| 200 | 570 | 335 | 295 | 8-Φ23 | 518 | 638 | 400 | 146 | ||
| 250 | 0.4 | 680 | 390 | 350 | 12-Φ23 | 598 | 734 | 500 | 240 | |
| 300 | 0.6MPa | 790 | 440 | 400 | 12-Φ23 | 698 | 778 | 560 | 334 | |
| 350 | 900 | 500 | 460 | 16-Φ23 | 723 | 883 | 560 | 371 | ||
| 400 | 0.25 | 1000 | 565 | 505 | 16-Φ25 | 868 | 1078 | 640 | 584 | |
| 采用标准 | 设计与制造: | GB12239 | 结构长度：JB1688法兰连接长度： | JB78(PN1.0MPa) | ||||||
