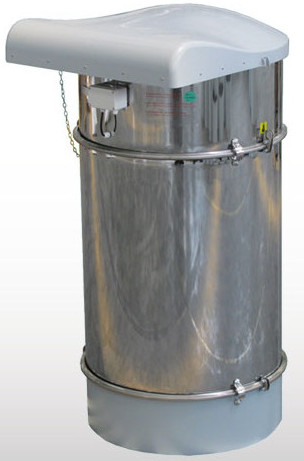

WAM Silo Venting Filters SILO V2

Describe:

SILO V2 is a cylindrical dust collector for ventilation when filling silos pneumatically. Its body is made of stainless steel with a polyester pleated filter element installed vertically inside. Filtration efficiency is guaranteed by the vibrating clean filter element.

Function

Dust is separated from the air stream by a cartridge filter. The dust falls back into the silo after periodically activating the vibration cleaning system.

Features

1.  Φ800mm (30 in) diameter stainless steel cylinder body with bottom flange, filter area is 22 m2 (237 sq ft)
2.  Maintenance height = 1,150 mm (3.8 ft)
3.  High filtration efficiency thanks to polyester pleated filter element
4.  Push-in filter element: No tools required to maintain the filter element
5.  The hinge connection rain cover is easy to open
6.  The rain cover with lock is safe and reliable

Advantage

1.  Increased service life and quick maintenance operations will reduce maintenance costs
2.  Low dust emission
3.  Improve production safety
