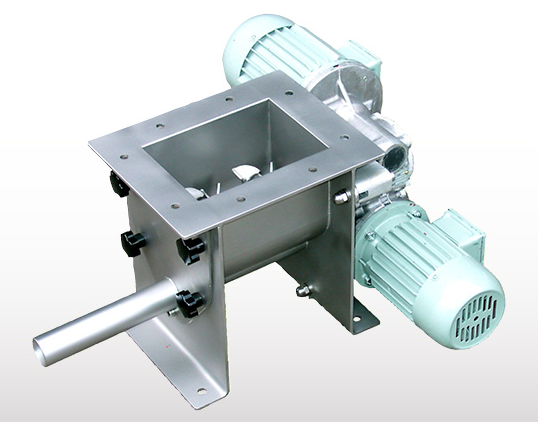

Micro-Batch Feeders with Agitator - MBF

Features

3 sizes available

Feed rates: 3 dm3/h ~ 4,000 dm3/h (0.001 ~ 2.4 cfm)

Body manufactured from SINT engineering polymer or stainless steel (the entire feeder may come in stainless steel with all components being interchangeable with the SINT version)

Agitator and feeder tool with separate drive units

Due to independent drive units it is possible to select different drive powers and speeds for both blending shaft and feeder screw

Wide range of interchangeable SINT engineering polymer or stainless steel feeder tools

Vast range of interchangeable components: seals, feeding pipe

High degree of homogeneity of the material fed

Versatile, adaptable, compact, reliable, accurate

Benefits

Minimum clearance between screw flight and feeder pipe ensuring high accuracy feeding

Internal body geometry ensuring free flow of difficult materials

Flexibility in choice of model most suitable for material to be fed

Easy and quick maintenance due to limited number of components

Easy and quick cleaning due to non-stick SINT engineering polymer surface and quick access panel
