Combined V-belt

Type: Metric AJ, BJ, CJ, DJ; Imperial 9J, 15J, 20, 25J

PRODUCT DETAILS

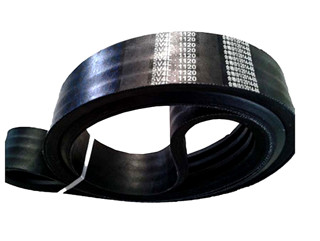

Combined V-belt

Combined V-belt is a V-belt group formed by combining the top surfaces of the same ordinary V-belt or narrow V-belt. Combined V-belts improve the lateral rigidity and stability of each V-belt by combining, thereby eliminating the vibration phenomenon of each single V-belt. power transmission.

Specification
Category	Type	Size				Length
Category	Type	Top width	Height	Center distance	Angle	Inch	MM
Metric combined V-belt	AJ	13.6	10	15.6	40°	20～150	635～3810
	BJ	17	13	19	40°	45～280	1145～7100
	CJ	22.4	16	25.5	40°	70～450	1778～11430
	DJ	32.8	21.5	37	40°	100～450	2540～13720
Inch combined V-belt	9J	9.5	10	10.3	40°	25～140	635～3556
	15J	15.9	15.5	17.5	40°	50～355	1270～9000
	20J	20.9	22	24.4	40°	78～425	2000～10800
	25J	25.4	25	28.6	40°	75～500	1900～12700
