Double row angular contact ball bearings

PRODUCT DETAILS

3200 3201 3202 3203 3204 3205 3206 3207 3208 3209 3210 3211 3212 3213 3214 3215 3216 3217 3218 3219 3220 3221 3222

model	d	D	B	seal(C-15°、AC-25°、B-40°)	Accuracy level	weight（kg）
3200	10	30	14.3	open、2Z、2RS	P0	0.051
3201	12	32	15.9	open、2Z、2RS	P0	0.058
3202	15	35	15.9	open、2Z、2RS	P0	0.066
3203	17	40	17.5	open、2Z、2RS	P0	0.096
3204	20	47	20.6	open、2Z、2RS	P0	0.16
3205	25	52	20.6	open、2Z、2RS	P0	0.18
3206	30	62	23.8	open、2Z、2RS	P0	0.29
3207	35	72	27	open、2Z、2RS	P0	0.44
3208	40	80	30.2	open、2Z、2RS	P0	0.58
3209	45	85	30.2	open、2Z、2RS	P0	0.63
3210	50	90	30.2	open、2Z、2RS	P0	0.66
3211	55	100	33.3	open、2Z、2RS	P0	0.92
3212	60	110	36.5	open、2Z、2RS	P0	1.2
3213	65	120	38.1	open、2Z、2RS	P0	1.6
3214	70	125	39.7	open、2Z、2RS	P0	1.7
3215	75	130	41.3	open、2Z、2RS	P0	1.8
3216	80	140	44.4	open、2Z、2RS	P0	2.25
3217	85	150	49.2	open、2Z、2RS	P0	2.85
3218	90	160	52.4	open、2Z、2RS	P0	3.55
3219	95	170	55.6	open、2Z、2RS	P0	4.3
3220	100	180	60.3	open、2Z、2RS	P0	5.2
3221	105	190	65.1	open、2Z、2RS	P0	6.3
3222	110	200	69.8	open、2Z、2RS	P0	7.5

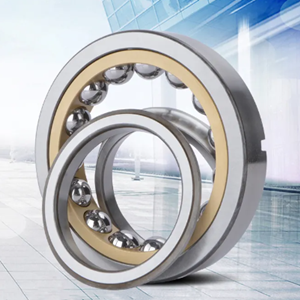

Angular contact ball bearings have raceways on the inner and outer rings, and the inner and outer rings can be displaced relative to each other along the axial direction of the bearing. These bearings are particularly suitable for withstanding composite loads, ie loads acting simultaneously in both radial and axial directions. The axial load bearing capacity of the angular contact ball bearing increases as the contact angle α increases. The contact angle is the angle between the line connecting the contact point of the ball and the raceway in the radial plane and the vertical line of the bearing axis.

The angular contact ball bearing models are divided into: α=15° angular contact ball bearings (70000C type); α=25° angular contact ball bearings (70000AC type); α=40° angular contact ball bearings (70000B type) Back-to-back paired double angular contact ball bearings [70000C (AC, B) / DB type]; face-to-face paired double angular contact ball bearings [70000C (AC, B) / DF type]; series paired double angle Contact ball bearings [70000C (AC, B) / DT type]; four point angular contact ball bearings (QJ0000 type). The material of the cage is brass, synthetic resin, etc., depending on the bearing type and the conditions of use.

Brand: SKF, FAG, NSK, NTN, TIMKEN, CHY, Neutral, OEM

Type: 71900, 7000, 7200, 7300, 7400, 3200, 3300, QJ1000, QJ200 ,QJ300

Accuracy: P0、P6、P5、P4、P2

Material: GCr15, carburized steel

Cage: Brass, Phenolic, Nylon

Keywords: Angular Contact Bearing\Bearing

Description：Brand: SKF, FAG, NSK, NTN, TIMKEN, CHY,NEUTRAL, OEM 71900, 7000, 7200, 7300, 7400, 3200, 3300, QJ1000, QJ200 ,QJ300 series
