UCP201 UCP202 UCP203 UCP204 UCP205 UCP206 UCP207 UCP208 UCP209 UCP210

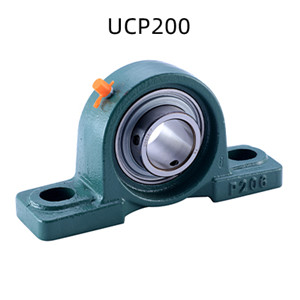

Vertical Pillow Block Bearings

PRODUCT DETAILS

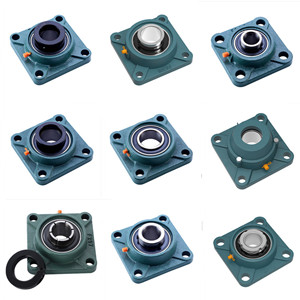

The outer spherical bearing is actually a variant of the deep groove ball bearing. At the same time, this type of bearing also has a certain self-alignment in design and is easy to install. Commonly used seats include vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), annular seat (C), slider seat, etc. ( T).

UCP201 UCP202 UCP203 UCP204 UCP205 UCP206 UCP207 UCP208 UCP209 UCP210

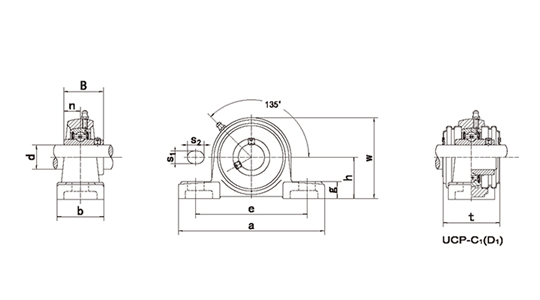

Model	Model	Bolt	d	a	i	e	W.T
UCP201	UC201	M10	12	127	38	95	0.7
UCP202	UC202	M10	15	127	38	95	0.69
UCP203	UC203	M10	17	127	38	95	0.68
UCP204	UC204	M10	20	127	38	95	0.68
UCP205	UC205	M10	25	140	38	105	0.82
UCP206	UC206	M14	30	165	48	121	1.36
UCP207	UC207	M14	35	167	48	127	1.73
UCP208	UC208	M14	40	184	54	137	2.1
UCP209	UC209	M14	45	190	54	146	2.3
UCP210	UC210	M16	50	206	60	159	2.7
