UCC201 UCC202 UCC203 UCC204 UCC205 UCC206 UCC207 UCC208 UCC209 UCC210 UCC211 UCC212 UCC213-Shanghai Anshu Mechanical&Electrical Equipment Co., Ltd.

Bearing

UCC201 UCC202 UCC203 UCC204 UCC205 UCC206 UCC207 UCC208 UCC209 UCC210 UCC211 UCC212 UCC213

Ring Pillow Block Bearings

PRODUCT DETAILS

UCC201 UCC202 UCC203 UCC204 UCC205 UCC206 UCC207 UCC208 UCC209 UCC210 UCC211 UCC212 UCC213

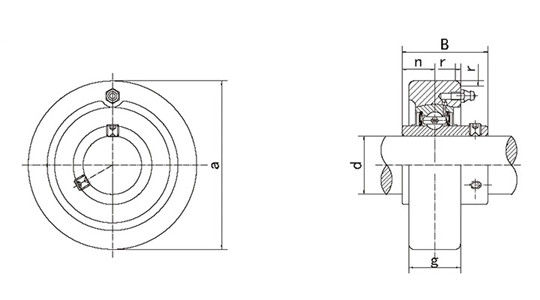

Model	Size ( mm )						Bearing	Bearing housing	W.T(kg)
Model	d	a	g	r	B	n	Bearing	Bearing housing	W.T(kg)
UCC201	12	72	20	2	31	12.7	UC201	C201	0.52
UCC202	15	72	20	2	31	12.7	UC202	C202	0.51
UCC203	17	72	20	2	31	12.7	UC203	C203	0.5
UCC204	20	72	20	2	31	12.7	UC204	C204	0.48
UCC205	25	80	22	2	34.1	14.3	UC205	C205	0.63
UCC206	30	85	27	2	38.1	15.9	UC206	C206	0.79
UCC207	35	90	28	2	42.9	17.5	UC207	C207	0.88
UCC208	40	100	30	2.5	49.2	19	UC208	C208	1.17
UCC209	45	110	31	2.5	49.2	19	UC209	C209	1.46
UCC210	50	120	33	2.5	51.6	19	UC210	C210	1.85
UCC211	55	125	35	2.5	55.6	22.2	UC211	C211	2.05
UCC212	60	130	38	2.5	65.1	25.4	UC212	C212	2.36
UCC213	65	140	40	3	65.1	25.4	UC213	C213	2.79

The outer spherical bearing is actually a variant of the deep groove ball bearing. At the same time, this type of bearing also has a certain self-alignment in design and is easy to install. Commonly used seats include vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), annular seat (C), slider seat, etc. ( T).
