UCC316 UCC317 UCC318 UCC319 UCC320 UCC322 UCC324 UCC326 UCC328-Shanghai Anshu Mechanical&Electrical Equipment Co., Ltd.

Bearing

UCC316 UCC317 UCC318 UCC319 UCC320 UCC322 UCC324 UCC326 UCC328

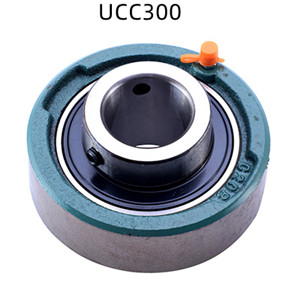

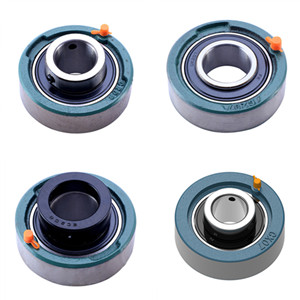

Ring Pillow Block Bearings

PRODUCT DETAILS

UCC316 UCC317 UCC318 UCC319 UCC320 UCC322 UCC324 UCC326 UCC328

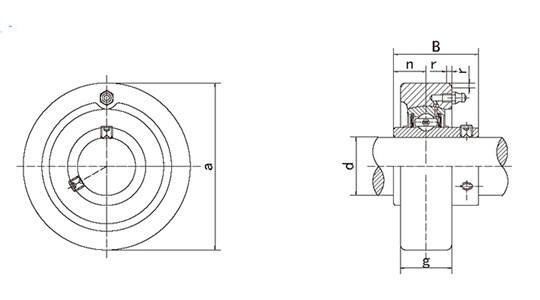

Model	Size ( mm )						Bearing	Bearing housing	W.T(kg)
Model	d	a	g	r	B	n	Bearing	Bearing housing	W.T(kg)
UCC316	80	200	60	4	86	34	UC316	C316	8.95
UCC317	85	215	64	4	96	40	UC317	C317	11.26
UCC318	90	225	66	4	96	40	UC318	C318	12.52
UCC319	95	240	72	4	103	41	UC319	C319	15
UCC320	100	260	75	4	108	42	UC320	C320	19.6
UCC322	110	300	80	5	117	46	UC322	C322	29.2
UCC324	120	320	90	5	126	51	UC324	C324	35.9
UCC326	130	340	100	5	135	54	UC326	C326	43
UCC328	140	360	100	5	145	59	UC328	C328	52.9

The outer spherical bearing is actually a variant of the deep groove ball bearing. At the same time, this type of bearing also has a certain self-alignment in design and is easy to install. Commonly used seats include vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), annular seat (C), slider seat, etc. ( T).
