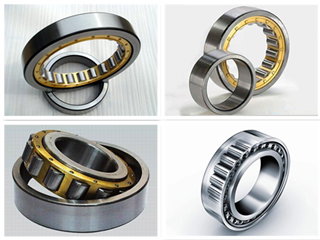

Roller bearing NU2204、NU2205、NU2206、NU2207、NU2208、NU2209、NU2210、NU2211、NU2212、NU2213、NU2214、NU2215、NU2216、NU2217、NU2218

NU2200 series NU2219、NU2220、NU2224、NU2226、NU2228、NU2230、NU2232、NU2234、NU2236、NU2238、NU2240、NU2244

PRODUCT DETAILS

Cylindrical rollers and raceways are linear contact bearings with large load capacity and mainly bear radial load. The friction between the rolling element and the retaining edge of the ring is small, which is suitable for high-speed rotation.

Brand: SKF, FAG, NSK, NTN, TIMKEN, CHY, neutral, OEM

Type: NU, NJ, NUP, N, NF, NN, NNU

Accuracy: P0, P6, P5, P4

Material: GCr15, carburized steel

Cage: steel, brass

model	d	D	B	seal	Accuracy level	weight（kg）
NU2204	20	47	18	NJ、N、NUP	P0	0.15
NU2205	25	52	18	NJ、N、NUP	P0	0.17
NU2206	30	62	20	NJ、N、NUP	P0	0.27
NU2207	35	72	23	NJ、N、NUP	P0	0.41
NU2208	40	80	23	NJ、N、NUP	P0	0.5
NU2209	45	85	23	NJ、N、NUP	P0	0.54
NU2210	50	90	23	NJ、N、NUP	P0	0.57
NU2211	55	100	25	NJ、N、NUP	P0	0.79
NU2212	60	110	28	NJ、N、NUP	P0	1.1
NU2213	65	120	31	NJ、N、NUP	P0	1.45
NU2214	70	125	31	NJ、N、NUP	P0	1.55
NU2215	75	130	31	NJ、N、NUP	P0	1.6
NU2216	80	140	33	NJ、N、NUP	P0	2
NU2217	85	150	36	NJ、N、NUP	P0	2.5
NU2218	90	160	40	NJ、N、NUP	P0	3.2
NU2219	95	170	43	NJ、N、NUP	P0	3.9
NU2220	100	180	46	NJ、N、NUP	P0	4.75
NU2222	110	200	53	NJ	P0	6.85
NU2224	120	215	58	NJ	P0	8.55
NU2226	130	230	64	NJ	P0	10.5
NU2228	140	250	68	NJ	P0	13.5
NU2230	150	270	73	NJ	P0	17
NU2232	160	290	80	NJ	P0	24
NU2234	170	310	86	NJ	P0	30
NU2236	180	320	86	NJ	P0	31.5
NU2238	190	340	92	NJ	P0	39
NU2240	200	360	98	NJ	P0	47.5
NU2244	220	400	108	NJ	P0	61.8
NU2248	240	440	120	NJ	P0	84.9
NU2252	260	480	130	NJ	P0	111
