Soft-Seal Butterfly Valve

Soft-Seal Butterfly Valve

D42X-10 D42X-16 D342X-10 D342X-16 D642X-10 D642X-16 D942X-10 D942X-16

PRODUCT DETAILS

法兰双偏心软密封蝶阀 Soft-Seal Butterfly Valve

Soft-Seal Butterfly Valve

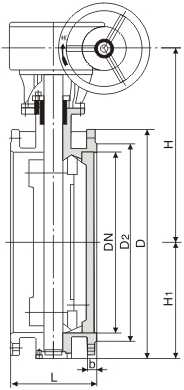

产品型号 Type	称径公通DN	L	D	PN1.0MPa			PN1.6MPa			D2	H	H1	WT(kg)
产品型号 Type	称径公通DN	L	D	D1	b	Z-Φd	D1	b	Z-Φd	D2	H	H1	1.0	1.6
D42X-10 D42X-16 D342X-10 D342X-16 D642X-10 D642X-16 D942X-10 D942X-16	50	108	160	125	20	4-Φ18	125	20	4-Φ18	99	160	85	15	18
	65	112	180	145	20	4-Φ18	145	20	4-Φ18	118	160	90	17	20
	80	114	195	160	22	8-Φ18	160	22	8-Φ18	132	180	100	20	22
	100	127	215	180	22	8-Φ18	180	24	8-Φ18	155	240	120	25	32
	125	140	245	210	24	8-Φ18	210	26	8-Φ18	185	270	130	34	40
	150	140	280	240	24	8-Φ23	240	28	8-Φ23	210	300	150	50	50
	200	152	335	295	26	8-Φ23	295	30	12-Φ23	265	330	180	70	75
	250	250/165	390	350	28	12-Φ23	355	32	12-Φ25	320	400	220	90	137
	300	270/178	440	400	28	12-Φ23	410	34	12-Φ25	368	410	220	120	145
	350	290/190	500	460	30	16-Φ23	470	38	16-Φ25	458	460	270	165	180
	400	310/216	565	515	32	16-Φ25	525	40	16-Φ30	482	510	290	180	250
	450	330/222	615	565	32	20-Φ25	585	44	20-Φ30	532	560	320	230	300
	500	350/229	670	620	34	20-Φ25	650	46	20-Φ34	585	590	360	280	350
	600	390/267	780	725	36	20-Φ30	770	54	20-Φ41	685	660	390	340	480
	700	430/292	895	840	40	24-Φ30	840	54	24-Φ41	800	780	460	490	600
	800	470/318	1010	950	44	24-Φ34	950	54	24-Φ41	905	850	530	680	1020
	900	510/330	1110	1050	46	28-Φ34	1050	54	28-Φ41	1005	920	570	1050	1350
	1000	550/410	1220	1160	50	28-Φ34	1170	60	28-Φ48	1115	990	630	1330	1700
	1200	630/470	1450	1380	56	32-Φ41	-	-	-	1325	1115	750	1600	-
	1400	710/530	1675	1590	62	36-Φ48	-	-	-	1528	1228	850	2300	-
	1600	790/600	1915	1820	68	40-Φ54	-	-	-	1750	1340	990	3400	-
	1800	870/670	2115	2020	72	44-Φ54	-	-	-	1950	1570	1100	4150	-
	2000	950/760	2325	2230	74	48-Φ54	-	-	-	2160	1680	1170	4250	-
