Expansion Butterfly Valve

Expansion Butterfly Valve

SD341X-10 SD341X-16 SD641X-10 SD641X-16 SD941X-10 SD941X-16

PRODUCT DETAILS

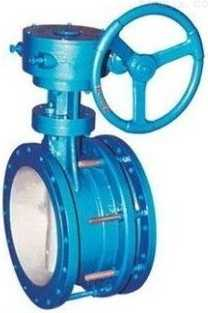

伸缩蝶阀 Expansion Butterfly Valve

Expansion Butterfly Valve

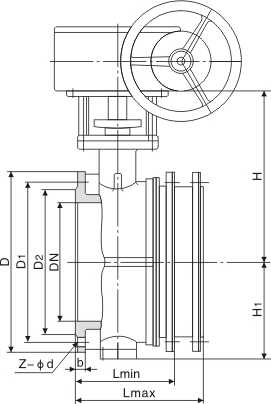

Type	DN	Lma	Lmin	D	PNI.0MPa			PN1.6MPa			D2	H	H1	WT(Kg)


					D1	b	Z-φd	D1	b	Z-φd
SD341X-10 SD341X-16 SD641X-10 SD641X-16 SD941X-10 SD941X-16	100	216	174	215	180	22	8-Φ18	180	24	8-Φ18	155	170	110	25
	125	232	186	245	210	24	8-Φ18	210	26	8-Φ18	185	185	123	34
	150	239	194	280	240	24	8-Φ23	240	28	8-Φ23	210	210	140	67
	200	264	214	335	295	26	8-Φ23	295	30	12-Φ23	265	238	170	88
	250	296	235	390	350	28	12-Φ23	355	32	12-Φ25	320	270	195	113
	300	300	250	440	400	28	12-Φ23	410	34	12-Φ25	368	300	222	120
	350	320	270	500	460	30	16-Φ23	470	38	16-Φ25	428	330	252	144
	400	332	282	565	515	32	16-Φ25	525	40	16-Φ30	482	368	285	180
	450	355	305	615	565	32	20-Φ25	585	44	20-Φ30	532	402	310	230
	500	365	315	670	620	34	20-Φ25	650	46	20-Φ34	585	438	337	280
	600	420	370	780	725	36	20-Φ30	770	54	20-Φ41	685	490	393	370
	700	446	396	895	840	40	24-Φ30	840	54	24-Φ41	800	558	450	690
	800	476	426	1010	950	44	24-Φ34	950	54	24-Φ41	905	625	515	1100
	900	506	456	1110	1050	46	28-Φ34	1050	54	28-Φ41	1005	685	560	1240
	1000	516	466	1220	1160	50	28-Φ34	1170	60	28-Φ48	1115	750	610	1500
	1200	560	510	1450	1380	56	32-Φ41	-	-	-	1325	880	725	2000
	1400	590	540	1675	1590	62	36-Φ48	-	-	-	1525	987	840	2800
	1600	630	585	1915	1820	68	40-Φ54	-	-	-	1750	1158	960	3900
	1800	680	630	2115	2020	72	44-Φ54	-	-	-	1950	1258	1060	5500
	2000	730	380	2325	2230	74	48-Φ54	-	-	-	2160	1365	1165	8500
