American Standard Folder Connection Metal Seal Butterfly Valve
CL150、CL300

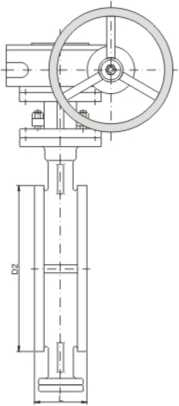

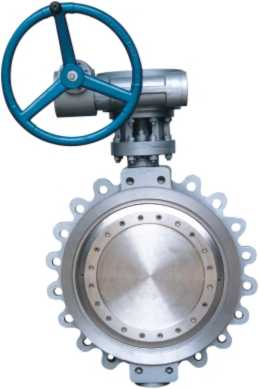

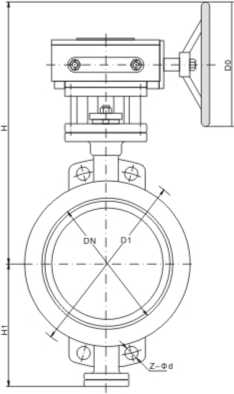

美标对夹连接金属密封蝶阀 American Standard Folder Connection Metal Seal Butterfly Valve
| 压力级 Class | 公称通径DN | L | D1 | D2 | Z-Φd | D0 | H1 | H | 重量(kg) | |||
| in | mm | D43 | D343 | D43 | D343 | |||||||
| 150 | 1 1/2 | 38 | 33 | 98.5 | 73 | 4-15 | 140 | 76 | 200 | 250 | 5 | 7 |
| 2 | 51 | 43 | 120.5 | 92 | 4-19 | 140 | 85 | 208 | 260 | 6 | 8.5 | |
| 2 1/2 | 64 | 46 | 139.5 | 105 | 4-19 | 160 | 95 | 228 | 284 | 8.5 | 11 | |
| 3 | 76 | 49 | 152.5 | 127 | 4-19 | 160 | 110 | 256 | 322 | 11.5 | 15.5 | |
| 4 | 102 | 56 | 190.5 | 157 | 8-19 | 180 | 122 | 278 | 338 | 16 | 18.5 | |
| 5 | 127 | 64 | 216 | 183 | 8-22 | 180 | 138 | 298 | 372 | 20.5 | 22.5 | |
| 6 | 152 | 70 | 241.5 | 216 | 8-22 | 230 | 158 | 326 | 404 | / | 28 | |
| 8 | 203 | 71 | 298.5 | 270 | 8-22 | 230 | 188 | / | 496 | / | 50 | |
| 10 | 254 | 76 | 362 | 324 | 12-25 | 280 | 224 | / | 558 | / | 64 | |
| 12 | 305 | 83 | 432 | 381 | 12-25 | 310 | 254 | / | 632 | / | 80 | |
| 14 | 356 | 92 | 476 | 413 | 12-29 | 310 | 288 | / | 672 | / | 104 | |
| 16 | 406 | 102 | 540 | 470 | 16-29 | 310 | 320 | / | 714 | / | 137.5 | |
| 18 | 457 | 114 | 578 | 533 | 16-32 | 380 | 350 | / | 768 | / | 177.5 | |
| 20 | 508 | 127 | 635 | 584 | 20-32 | 380 | 388 | / | 828 | / | 227 | |
| 24 | 610 | 154 | 749.5 | 692 | 20-35 | 450 | 404 | / | 952 | / | 306.5 | |
| 300 | 1 1/2 | 38 | 33 | 114.5 | 73 | 4-22 | 140 | 76 | 200 | 250 | 4.5 | 8.5 |
| 2 | 51 | 43 | 127 | 92 | 8-19 | 140 | 85 | 208 | 260 | 6 | 9.5 | |
| 2 1/2 | 64 | 46 | 149 | 105 | 8-22 | 180 | 95 | 228 | 294 | 7 | 12 | |
| 3 | 76 | 49 | 168.5 | 127 | 8-22 | 180 | 110 | 256 | 332 | 9.5 | 17 | |
| 4 | 102 | 56 | 200 | 157 | 8-22 | 230 | 130 | 285 | 364 | 13 | 20 | |
| 5 | 127 | 64 | 235 | 186 | 8-22 | 230 | 148 | 308 | 396 | 18 | 24.5 | |
| 6 | 152 | 70 | 270 | 216 | 12-22 | 280 | 165 | 336 | 430 | 22.5 | 30.5 | |
| 8 | 203 | 71 | 330 | 270 | 12-25 | 280 | 198 | / | 522 | / | 54 | |
| 10 | 254 | 76 | 387.5 | 324 | 16-29 | 310 | 234 | / | 574 | / | 68 | |
| 12 | 305 | 83 | 451 | 381 | 16-32 | 380 | 266 | / | 668 | / | 86 | |
| 14 | 356 | 92 | 514.5 | 413 | 20-32 | 380 | 302 | / | 708 | / | 112 | |
| 16 | 406 | 102 | 571.5 | 470 | 20-35 | 380 | 338 | / | 750 | / | 148 | |
| 18 | 457 | 114 | 628.5 | 533 | 24-35 | 450 | 365 | / | 804 | / | 190 | |
| 20 | 508 | 127 | 686 | 584 | 24-35 | 450 | 402 | / | 862 | / | 242 | |
| 24 | 610 | 154 | 813 | 692 | 24-41 | 560 | 448 | / | 1008 | / | 326 | |
