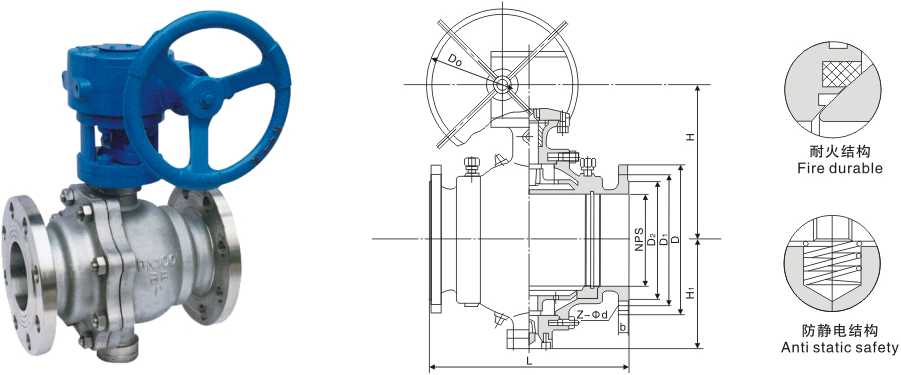

Trunnion-mornted Ball Valves
Q47F-16C Q47F-16P Q67F-16C Q347F-16C Q347F-16P Q367F-16C Q647F-16C Q647F-16P Q667F-16C Q747F-16C Q747F-16P Q767F-16C Q9B47F-16C Q9B47F-16P Q9B67F-16C
Trunnion-mornted Ball Valves
| 产品型号 Type | 公称通径DN | PN1.6MPa | WT (kg) | ||||||||
| L | D | D1 | D2 | b | Z-Φd | H | H1 | Do | |||
| Q47F-16C Q47F-16P Q67F-16C Q347F-16C Q347F-16P Q367F-16C Q647F-16C Q647F-16P Q667F-16C Q747F-16C Q747F-16P Q767F-16C Q9B47F-16C Q9B47F-16P Q9B67F-16C |
50 | 178 | 160 | 125 | 100 | 16 | 4-Φ18 | 177 | 120 | - | 15 |
| 65 | 191 | 180 | 145 | 120 | 18 | 4-Φ18 | 190 | 140 | - | 19 | |
| 80 | 203 | 195 | 160 | 135 | 20 | 8-Φ18 | 210 | 150 | - | 27 | |
| 100 | 229 | 215 | 180 | 155 | 20 | 8-Φ18 | 235 | 172 | - | 38 | |
| 125 | 356 | 245 | 210 | 185 | 22 | 8-Φ18 | 350 | 215 | - | 58 | |
| 150 | 394 | 280 | 240 | 210 | 24 | 8-Φ23 | 530 | 250 | - | 81 | |
| 200 | 457 | 335 | 295 | 265 | 26 | 12-Φ23 | 620 | 290 | 600 | 140 | |
| 250 | 533 | 405 | 355 | 320 | 30 | 12-Φ25 | 650 | 320 | 600 | 160 | |
| 300 | 610 | 460 | 410 | 375 | 30 | 12-Φ25 | 780 | 360 | 600 | 205 | |
| 350 | 686 | 520 | 470 | 435 | 34 | 16-Φ25 | 790 | 395 | 800 | 260 | |
| 400 | 762 | 580 | 525 | 485 | 36 | 16-Φ30 | 920 | 450 | 800 | 390 | |
| 450 | 864 | 640 | 585 | 545 | 40 | 20-Φ30 | 970 | 490 | 800 | 510 | |
| 500 | 914 | 705 | 650 | 608 | 44 | 20-Φ34 | 1100 | 530 | 800 | 750 | |
| 600 | 1067 | 840 | 770 | 718 | 48 | 20-Φ41 | 1150 | 590 | 800 | 1200 | |
| 700 | 1245 | 910 | 840 | 788 | 50 | 24-Φ41 | 1850 | 700 | 800 | 2100 | |
