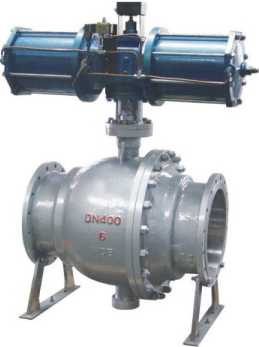

卸灰固定球阀 Fixed cinder Ball Valve

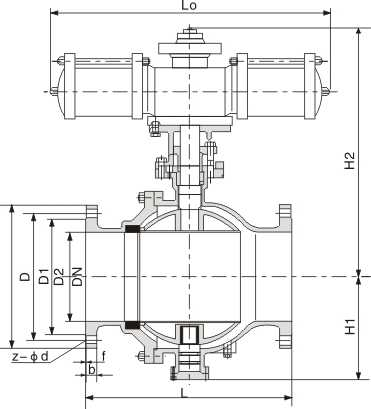

| DN | L | D | D1 | D2 | b | f | Z-Φd | H1 | H2 | Lo | 重量（kg） | |||
| Series1 | Series2 | Series1 | Series2 | Series1 | Series2 | Weight | ||||||||
| 200 | 500 | 320 | 280 | 254 | 258 | 22 | 26 | 2 | 3 | 8xΦ17.5 | 255 | 730 | 812 | 300 |
| 250 | 600 | 375 | 335 | 309 | 312 | 24 | 28 | 2 | 3 | 12xΦ17.5 | 310 | 800 | 812 | 370 |
| 300 | 700 | 440 | 395 | 363 | 365 | 24 | 28 | 2 | 4 | 12xΦ22 | 370 | 852 | 812 | 440 |
| 350 | 800 | 490 | 445 | 413 | 415 | 26 | 30 | 2 | 4 | 12xΦ22 | 440 | 920 | 812 | 770 |
| 400 | 900 | 540 | 495 | 463 | 465 | 28 | 32 | 2 | 4 | 16xΦ22 | 490 | 1050 | 1020 | 880 |
| 500 | 1000 | 645 | 600 | 518 | 570 | 32 | 34 | 2 | 4 | 20xΦ22 | 610 | 1100 | 1020 | 1100 |
