Poweder-Coal Ejection Ball Valve
1.6MPa
喷煤粉专用球闽 Poweder-Coal Ejection Ball Valve

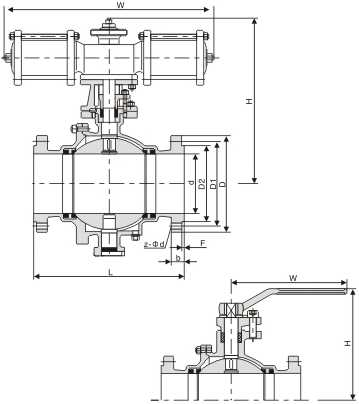

| 公称压力 PN(MPa) Nominal pressure | 公称通径 DN(mm) Nominal diameter | 尺寸Dimension(mm) | ||||
| L | W | H | ||||
| 手动 Manual | 气动 | 手动 Manual | 气动 | |||
| Pneumatic | Pneumatic | |||||
| 1.6MPa | 25 | 180 | 140 | 235 | 90 | 298 |
| 32 | 200 | 155 | 235 | 107 | 304 | |
| 40 | 220 | 250 | 330 | 127 | 370 | |
| 50 | 220 | 250 | 330 | 140 | 376 | |
| 65 | 241 | 350 | 400 | 164 | 425 | |
| 80 | 283 | 350 | 510 | 177 | 484 | |
| 100 | 305 | 420 | 510 | 206 | 531 | |
| 125 | 356 | 700 | 580 | 292 | 570 | |
| 150 | 394 | 100 | 720 | 320 | 570 | |
| 200 | 457 | - | 720 | - | 610 | |
| 250 | 533 | - | 900 | - | 670 | |
| 300 | 610 | - | 1050 | - | 740 | |
| 350 | 686 | - | 1290 | - | 790 | |
| 400 | 762 | - | 1600 | - | 905 | |
