Jacket Ball Valve

BQ41F-16C BQ41F-16P BQ41F-16R BQ641F-16C BQ641F-16P BQ641F-16R BQ941F-16C BQ941F-16P BQ941F-16RBQ41F-25 BQ41F-25P BQ41F-25R BQ641F-25C BQ641F-25P BQ641F-25R BQ941F-25C BQ941F-25P BQ941F-25R

PRODUCT DETAILS

保温球阀 Jacket Ball Valve

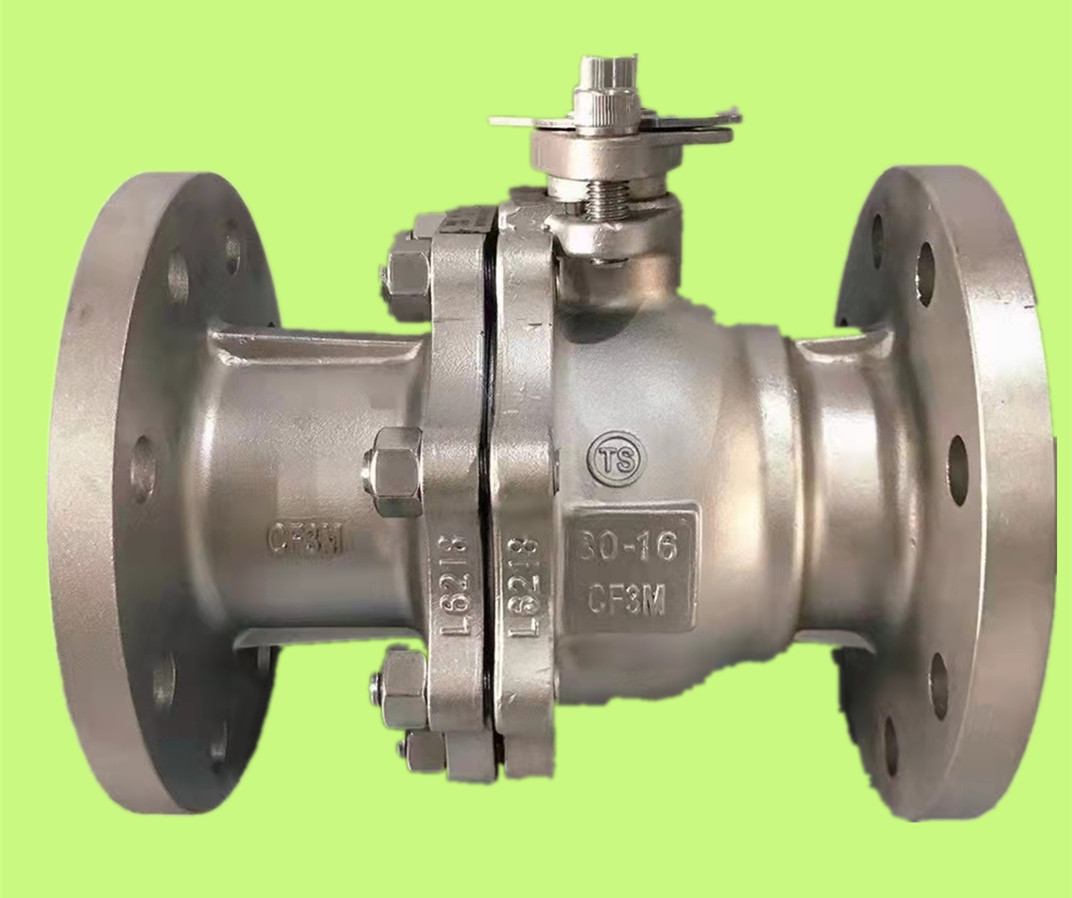

Jacket Ball Valve

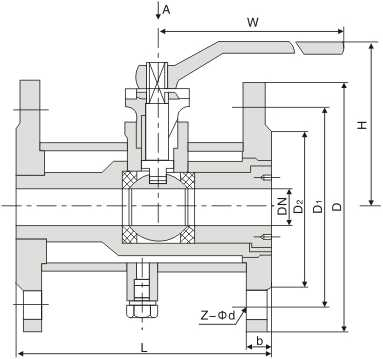

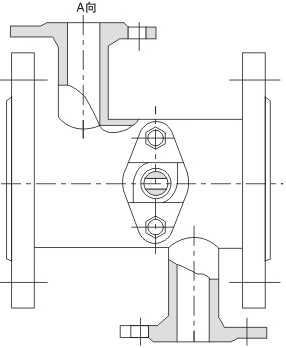

主要外形和连接尺寸 Main External and Connection Dimension								单位Unit： mm
产品型号 Type	公称通径 DN	PN1.6MPa								WT (kg)
产品型号 Type	公称通径 DN	L	D	D1	D2	b	Z-Φd	H	W	WT (kg)
BQ41F-16C BQ41F-16P BQ41F-16R BQ641F-16C BQ641F-16P BQ641F-16R BQ941F-16C BQ941F-16P BQ941F-16R	15	108	95	65	45	14	4-Φ14	95	160	2.5
	20	117	105	75	55	14	4-Φ14	101	160	3
	25	127	115	85	65	14	4-Φ14	106	160	5
	32	140	135	100	78	16	4-Φ18	112	230	6
	40	165	145	110	85	16	4-Φ18	125	230	7
	50	178	160	125	100	16	4-Φ18	135	230	10
	65	191	180	145	120	18	4-Φ18	170	400	16
	80	203	195	160	135	20	8-Φ18	193	400	19
	100	229	215	180	155	20	8-Φ18	265	700	33
	125	356	245	210	185	22	8-Φ18	310	700	48
	150	394	280	240	210	24	8-Φ23	355	1100	62
	200	457	335	295	265	26	12-Φ23	410	1500	93
	250	533	405	355	320	30	12-Φ25	560	1500	120

主要外形和连接尺寸 Main External and Connection Dimension								单位Unit： mm
产品型号 Type	公称通径 DN	PN1.6MPa								WT (kg)
产品型号 Type	公称通径 DN	L	D	D1	D2	b	Z-Φd	H	W	WT (kg)
BQ41F-25 BQ41F-25P BQ41F-25R BQ641F-25C BQ641F-25P BQ641F-25R BQ941F-25C BQ941F-25P BQ941F-25R	15	140	95	65	45	16	4-Φ14	95	160	3
	20	152	105	75	55	16	4-Φ14	101	160	4
	25	165	115	85	65	16	4-Φ14	106	160	6
	32	178	135	100	78	18	4-Φ18	112	230	7
	40	190	145	110	85	18	4-Φ18	125	230	38
	50	216	160	125	100	20	4-Φ18	135	230	11
	65	241	180	145	120	22	8-Φ18	170	400	18
	80	283	195	160	135	22	8-Φ18	193	400	23
	100	305	230	190	160	24	8-Φ23	265	700	40
	125	381	270	220	188	28	8-Φ25	310	700	70
	150	403	300	250	218	30	8-Φ25	355	1100	102
	200	502	360	310	278	34	12-Φ25	410	1500	150
	250	568	425	370	332	36	12-Φ30	560	1500	182
