J41H-100 J41Y-100 J41Y-100P J41Y-100R J41Y-100I J941H-100 J941Y-100 J941Y-100P J941Y-100R J941Y-100I

PRODUCT DETAILS

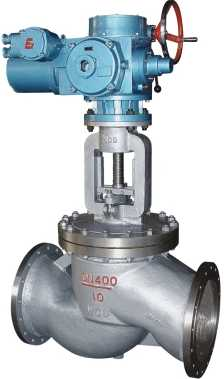

电动截止阀 Electric Globe Valve

Electric Globe Valve

产品型号 Type	公称通径 DN	PN10.0MPa									WT(kg)

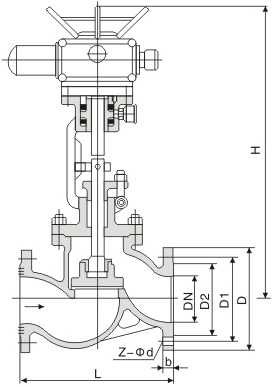

产品型号 Type	公称通径 DN	L	D	D1	D2	D6	b	Z-Φd	H	D0	WT(kg)
J41H-100 J41Y-100 J41Y-100P J41Y-100R J41Y-100I J941H-100 J941Y-100 J941Y-100P J941Y-100R J941Y-100I	15	170	105	75	55	40	20	4-Φ14	202	140	11
	20	190	125	90	68	51	22	4-Φ18	228	160	14
	25	210	135	100	78	58	24	4-Φ18	250	180	17
	32	230	150	110	82	66	24	4-Φ23	326	220	22
	40	260	165	125	95	76	26	4-Φ23	359	240	29
	50	300	195	145	112	88	28	4-Φ25	414	280	39
	65	340	220	170	138	110	32	8-Φ25	434	320	54
	80	380	260	180	148	121	34	8-Φ25	547	400	75
	100	430	300	210	172	150	38	8-Φ30	621	450	125
	125	500	310	250	210	176	42	8-Φ34	732	450	266
	150	550	350	290	250	204	46	12-Φ34	840	500	310
	200	650	350	360	312	260	54	12-Φ41	925	550	590

产品型号 Type	公称通径 DN	PN16.0MPa									WT(kg)
产品型号 Type	公称通径 DN	L	D	D1	D2	D6	b	Z-Φd	H	D0	J41	J941
J41H-160 J41Y-160 J41Y-160P J41Y-160R J41Y-160I J941H-160 J941Y-160 J941Y-160P J941Y-160R J941Y-160I	15	170	110	75	52	40	24	4-Φ18	148	140	5	6
	20	190	130	90	65	51	26	4-Φ23	156	160	8	7
	25	210	140	100	72	58	28	4-Φ23	125	180	10	19
	32	230	165	115	85	66	30	4-Φ25	200	200	12	25
	40	260	175	125	92	76	32	4-Φ27	231	240	15	33
	50	300	215	165	132	88	36	8-Φ25	262	250	30	45
	65	340	245	190	152	110	44	8-Φ30	303	320	65	65
	80	380	260	205	168	121	46	8-Φ30	341	400	83	83
	100	430	300	240	200	150	48	8-Φ34	485	450	125	142
