Plunger Globe Valve

U41S-16C U41S-16P U414S-16R U41SM-16C U41SM-16P U41SM-16R US41F-16C US41F-16P US41F-16R

PRODUCT DETAILS

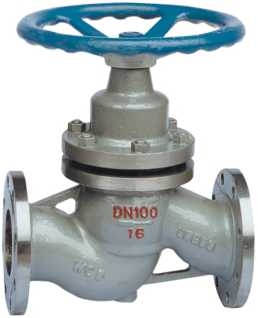

柱塞截止阀 Plunger Globe Valve

Plunger Globe Valve

产品型号 Type	公称通径 DN	PN1.6/2.5/4.0MPa									WT (kg)

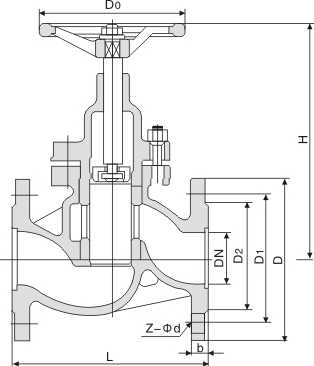

产品型号 Type	公称通径 DN	L	D	D1	D2	b	f	Z-Φd	H	D0	WT (kg)
U41S-16C U41S-16P U414S-16R U41SM-16C U41SM-16P U41SM-16R US41F-16C US41F-16P US41F-16R	15	130	95	65	45	14	2	4-Φ14	128	80	3.5
	20	150	105	75	55	16	2	4-Φ14	165	80	5
	25	160	115	85	65	16	2	4-Φ14	190	100	6.5
	32	180	135	100	78	18	2	4-Φ18	216	120	9
	40	200	245	110	85	18	3	4-Φ18	236	160	13
	50	230	160	125	100	20	3	4-Φ18	250	180	17
	65	290	180	145	120	20	3	4-Φ18	255	200	23
	80	310	195	160	135	22	3	8-Φ18	255	280	31
	100	350	215	180	155	24	3	8-Φ18	259	320	42
	125	400	245	210	185	26	3	8-Φ18	352	360	73
	150	480	280	240	210	28	3	8-Φ23	362	360	105
	200	600	335	295	265	30	3	12-Φ23	385	450	210
U41S-25 U41S-25P U41S-25R U41SM-25 U41SM-25P U41SM-25R US41F-25 US41F-25P US414F-25R	15	130	95	65	45	16	2	4-Φ14	133	100	3.7
	20	150	105	75	55	6	2	4-Φ14	178	100	5.3
	25	160	115	85	65	16	2	4-Φ14	180	120	6.8
	32	180	135	100	78	18	3	4-Φ18	195	140	9.5
	40	200	145	110	85	18	3	4-Φ18	220	180	13.5
	50	230	160	125	100	20	3	4-Φ18	250	180	18
	65	290	180	145	120	22	3	8-Φ18	272	200	25
	80	310	195	160	135	22	3	8-Φ18	275	320	35
	100	350	230	190	160	24	3	8-Φ23	312	360	47
	125	400	270	220	188	28	3	8-Φ25	365	450	78
	150	480	300	250	218	30	3	8-Φ25	410	450	112
	200	600	360	310	278	34	3	12-Φ25	450	500	220
U41S-40 U41S-40P U41S-40R U41SM-40 U41SM-40P U41SM-40R US41F-40 US41F-40P US41F-40R	15	130	95	65	45	16	2	4-Φ14	145	100	4
	20	150	105	75	55	16	2	4-Φ18	195	100	6
	25	160	115	85	65	16	2	4-Φ18	202	120	8
	32	180	135	100	75	18	2	4-Φ23	226	140	12
	40	200	145	110	85	18	3	4-Φ23	239	180	15
	50	230	160	125	100	20	3	4-Φ23	265	180	22
	65	290	180	145	120	22	3	8-Φ23	287	200	28
	80	310	195	160	135	22	3	8-Φ23	301	320	39
	100	350	230	190	160	24	3	8-Φ25	346	360	51
	125	400	270	220	188	28	3	8-Φ25	363	450	83
	150	480	300	250	218	30	3	8-Φ25	415	450	114
	200	600	375	320	282	38	3	12-Φ30	557	500	218
