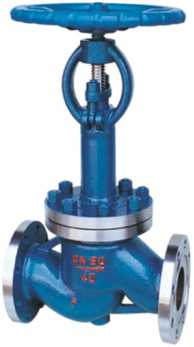

Cryogenic Globe Valve

J41Y-16C J41Y-16P J41Y-16R J641Y-16C J641Y-16P J641Y-16R J9B41Y-16C J9B41Y-16P J9B41Y-16R

PRODUCT DETAILS

低温截止阀 Cryogenic Globe Valve

Cryogenic Globe Valve

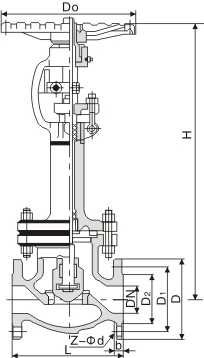

产品型号 Type	公称通径 DN	PN1.6/2.5/4.0MPa						H			D0	WT (kg)
产品型号 Type	公称通径 DN	L	D	D1	D2	b	Z-Φd	-46℃	-101℃	-196℃	D0	WT (kg)
J41Y-16C J41Y-16P J41Y-16R J641Y-16C J641Y-16P J641Y-16R J9B41Y-16C J9B41Y-16P J9B41Y-16R	50	230	160	125	100	16	4-Φ18	460	480	520	240	15
	65	290	180	145	120	18	4-Φ18	475	505	525	280	23
	80	310	195	160	135	20	8-Φ18	520	550	590	280	28
	100	350	215	180	155	20	8-Φ18	545	575	615	320	32
	125	400	245	210	185	22	8-Φ18	590	620	660	360	88
	150	480	280	240	210	24	8-Φ23	650	680	730	400	96
	200	600	335	295	265	26	12-Φ23	850	880	930	400	155
	250	730	405	355	320	30	12-Φ25	956	986	1036	450	425
	300	850	460	410	375	30	12-Φ25	1095	1125	1175	500	641
J41Y-25 J41Y-25P J41Y-25R J641Y-25 J641Y-25P J641Y-25R J9B41Y-25 J9B41Y-25P J9B41Y-25R	50	230	160	125	100	20	4-Φ18	460	480	520	240	16
	65	290	180	145	120	22	8-Φ18	475	505	525	280	23
	80	310	195	160	135	22	8-Φ18	520	550	590	280	29
	100	350	230	190	160	24	8-Φ23	545	575	615	320	32
	125	400	270	220	188	28	8-Φ25	590	620	660	360	90
	150	480	300	250	218	30	8-Φ25	650	680	730	400	98
	200	600	360	310	278	34	12-Φ25	850	880	930	400	159
	250	730	425	370	332	36	12-Φ30	956	986	1036	450	436
	300	850	485	430	390	40	16-Φ30	1095	1125	1175	500	657
J41Y-40 J41Y-40P J41Y-40R J641SY-40 J641SY-40P J641SY-40R J9B41Y-40 J9B41Y-40P J9B41Y-40R	50	230	160	125	100	88	20	483	504	546	240	16
	65	290	180	145	120	110	22	499	530	551	280	24
	80	310	195	160	135	121	22	546	578	620	280	30
	100	350	230	190	160	150	24	572	604	646	320	33
	125	400	270	220	188	176	28	620	651	693	360	93
	150	480	300	250	218	204	30	683	741	767	400	100
	200	600	360	320	282	260	38	893	924	977	400	163
	250	730	425	385	345	313	42	1004	1035	1088	450	447
	300	850	485	450	408	364	48	1150	1181	1234	500	673
