Power-Station Globe Valve

J61Y-250 J61Y-320 J961H-250 J961Y-320 J61Y-P54100V J61Y-P54140V J961Y-P54100V J961Y-P54140V

PRODUCT DETAILS

电站截止阀 Power-Station Globe Valve

Power-Station Globe Valve

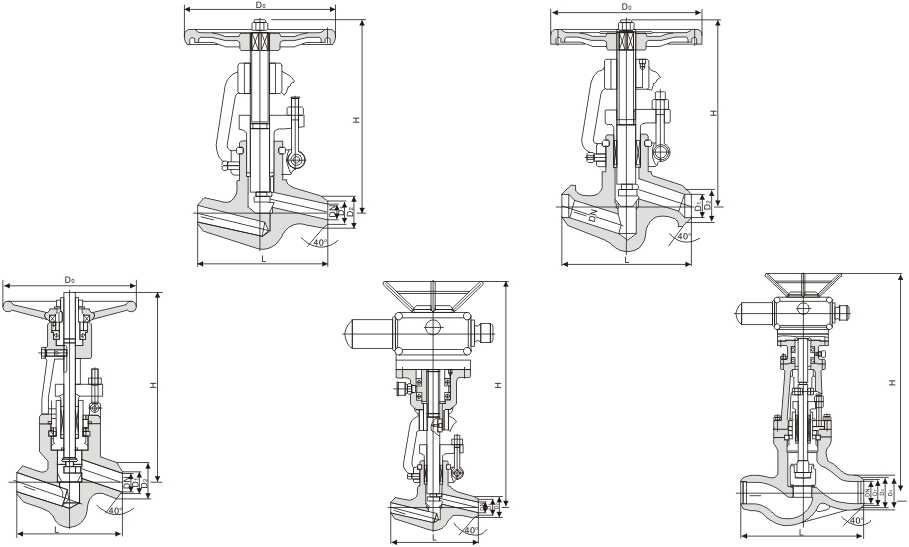

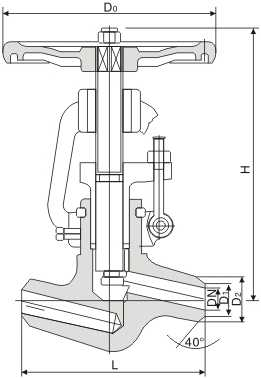

产品型号 Type	公称通径 DN	主要外形尺寸和连接尺寸(mm ) Main external and connecting dimensions				WT(Kg)
产品型号 Type	公称通径 DN	L	D1	D2	H	WT(Kg)
J61H-200 J61Y-200 J961H-200 J961Y-200	20	170	22	42	480	38
	25	170	27	42	520	41
	32	200	34	52	728	58
	50	350	53	76	728	89
	80	500	86	108	798	135
	100	600	107	161	890	190
J61Y-250 J61Y-320 J961H-250 J961Y-320	20	150	25	40	576	47
	25	170	27	42	585	49
	32	180	32	55	606	52
	50	250	50	83	722	73
	80	470	80	105	895	225
	100	600	100	142	1179	296

产品型号 Type	公称通径	主要外形尺寸和连接尺寸(mm ) Main external and connecting dimensions				WT(Kg)
产品型号 Type	DN	L	D1	D2	H	WT(Kg)
J61Y-P54100V J61Y-P54140V J961Y-P54100V J961Y-P54140V	20	170	22	42	480	38
	25	170	27	42	520	41
	32	200	34	52	728	58
	50	350	53	76	728	89
	80	500	86	108	798	135
	100	600	107	161	890	190
J61Y-P54170V J61Y-P54195V J961Y-P54170V J961Y-P54195V	20	150	25	40	576	47
	25	170	27	42	585	49
	32	180	32	55	606	52
	50	250	50	83	722	73
	80	470	80	105	895	225
	100	600	100	142	1179	296
