Discharge Globe Valve
FJ41-25 KFJ41Y-25 FJ41Y-40 KFJ41Y-40 FJ41Y-64 KFJ41Y-64 FJ41Y-100 KFJ41Y-100

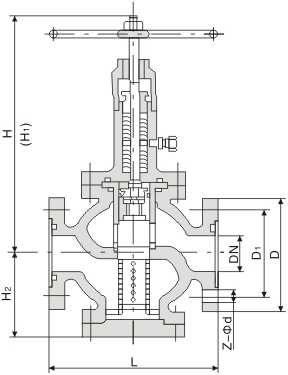

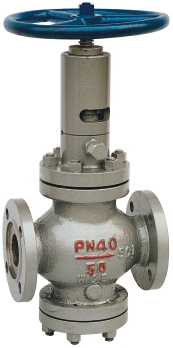

节流放空截止阀 Discharge Globe Valve
| 产品型号 Type | 公称通径 DN | PN2.5MPa | WT (kg) | ||||||
| L | D | D1 | H | H1 | H2 | Z-Φd | |||
| FJ41-25 KFJ41Y-25 | 50 | 230 | 160 | 125 | 350 | 400 | 112 | 4-Φ18 | 23 |
| 65 | 290 | 180 | 145 | 360 | 420 | 132 | 8-Φ18 | 30 | |
| 80 | 310 | 195 | 160 | 410 | 480 | 145 | 8-Φ18 | 46 | |
| 100 | 350 | 230 | 190 | 435 | 500 | 165 | 8-Φ23 | 61 | |
| 125 | 400 | 270 | 220 | 485 | 545 | 213 | 8-Φ25 | 81 | |
| 150 | 480 | 300 | 250 | 525 | 615 | 225 | 8-Φ25 | 100 | |
| 200 | 600 | 360 | 310 | 598 | 725 | 295 | 12-Φ25 | 171 | |
| 产品型号 Type | 公称通径 DN | PN4.0MPa | WT (kg) | ||||||
| L | D | D1 | H | H1 | H2 | Z-Φd | |||
| FJ41Y-40 KFJ41Y-40 | 50 | 230 | 160 | 125 | 400 | 350 | 112 | 4-Φ18 | 26 |
| 65 | 290 | 180 | 145 | 420 | 360 | 132 | 8-Φ18 | 36 | |
| 80 | 310 | 195 | 160 | 480 | 410 | 145 | 8-Φ18 | 51 | |
| 100 | 350 | 230 | 190 | 500 | 435 | 165 | 8-Φ23 | 66 | |
| 125 | 400 | 270 | 220 | 545 | 485 | 213 | 8-Φ25 | 86 | |
| 150 | 480 | 300 | 250 | 615 | 525 | 225 | 8-Φ25 | 106 | |
| 200 | 600 | 375 | 320 | 725 | 598 | 295 | 12-Φ30 | 176 | |
| 产品型号 Type | 公称通径 DN | PN6.4MPa | WT (kg) | ||||||
| L | D | D1 | H | H1 | H2 | Z-Φd | |||
| FJ41Y-64 KFJ41Y-64 |
50 | 230 | 175 | 135 | 400 | 350 | 112 | 4-Φ23 | 31 |
| 65 | 290 | 200 | 160 | 420 | 360 | 132 | 8-Φ23 | 41 | |
| 80 | 310 | 210 | 170 | 480 | 410 | 145 | 8-Φ23 | 76 | |
| 100 | 350 | 250 | 200 | 500 | 435 | 165 | 8-Φ25 | 97 | |
| 产品型号 Type | 公称通径 DN | PN10.0MPa | WT (kg) | ||||||
| L | D | D1 | H | H1 | H2 | Z-Φd | |||
| FJ41Y-100 KFJ41Y-100 |
50 | 300 | 195 | 145 | 405 | 355 | 117 | 4-Φ25 | 31 |
| 65 | 340 | 220 | 170 | 425 | 370 | 137 | 8-Φ25 | 75 | |
| 80 | 380 | 230 | 180 | 485 | 415 | 149 | 8-Φ25 | 116 | |
| 100 | 430 | 265 | 210 | 505 | 440 | 168 | 8-Φ30 | 137 | |
