DIN Bellows Globe valve

DIN Bellows Globe valve

DNI/WJ41H-16C DNI/WJ41W-16P DNI/WJ41H-25 DNI/WJ41W-25P DNI/WJ41H-40 DNI/WJ41W-40P

PRODUCT DETAILS

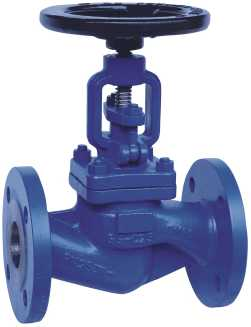

德标波纹管截止阀 DIN Bellows Globe valve

DIN Bellows Globe valve

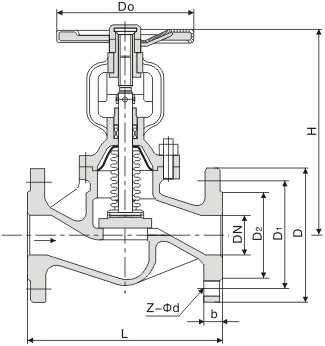

产品型号 Type	公称通径 DN	PN1.6/2.5/4.0MPa								WT (kg)
产品型号 Type	公称通径 DN	L	D	D1	D2	b	Z-Φd	H	D0	WT (kg)
DNI/WJ41H-16C DNI/WJ41W-16P	15	130	95	65	45	16	4-Φ14	191	120	5
	20	150	105	75	58	18	4-Φ14	191	140	7
	25	160	115	85	68	18	4-Φ14	197	140	9
	32	180	140	100	78	18	4-Φ18	200	160	12
	40	200	150	110	88	18	4-Φ18	218	200	16
	50	230	165	125	102	20	4-Φ18	220	200	19
	65	290	185	145	122	18	4-Φ18	238	240	23
	80	310	200	160	138	20	8-Φ18	257	240	30
	100	350	220	180	158	20	8-Φ18	340	320	42
	125	400	250	210	188	22	8-Φ18	360	360	63
	150	480	285	240	212	22	8-Φ22	390	360	90
	200	600	340	295	268	24	12-Φ22	530	500	150
DNI/WJ41H-25 DNI/WJ41W-25P	15	130	95	65	45	16	4-Φ14	191	120	5
	20	150	105	75	58	18	4-Φ14	191	160	7
	25	160	115	85	68	18	4-Φ14	197	160	9
	32	180	140	100	78	18	4-Φ18	200	160	12
	40	200	150	110	88	18	4-Φ18	218	200	19
	50	230	165	125	102	20	4-Φ18	220	200	24
	65	290	185	145	122	22	4-Φ18	238	280	33
	80	310	200	160	138	24	8-Φ18	257	280	44
	100	350	235	220	162	24	8-Φ22	340	320	60
	125	400	270	250	188	26	8-Φ26	360	360	72
	150	480	300	295	218	28	8-Φ26	390	360	98
	200	600	360	310	278	30	12-Φ26	530	500	169
DNI/WJ41H-40 DNI/WJ41W-40P	15	130	95	65	45	16	4-Φ14	191	120	5
	20	150	105	75	58	18	4-Φ14	191	160	7
	25	160	115	85	68	18	4-Φ14	197	160	9
	32	180	140	100	78	18	4-Φ18	200	160	12
	40	200	150	110	88	18	4-Φ18	218	200	16
	50	230	165	125	102	20	4-Φ18	220	200	23
	65	290	185	145	122	22	8-Φ18	238	280	33
	80	310	200	160	138	24	8-Φ18	257	280	45
	100	350	235	220	162	24	8-Φ22	340	320	69
	125	400	270	250	188	26	8-Φ26	360	360	98
	150	480	300	295	218	28	8-Φ26	390	360	170
