Oxygen Globe valve
Oxygen Globe valve
YJ41W-25P YJ41W-25T YJ41W-40P YJ41W-40T
PRODUCT DETAILS

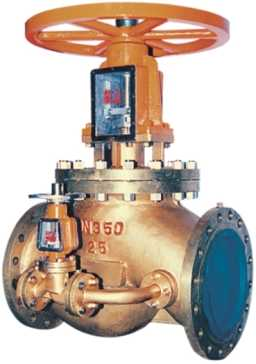

氧气专用截止阀 Oxygen Globe valve

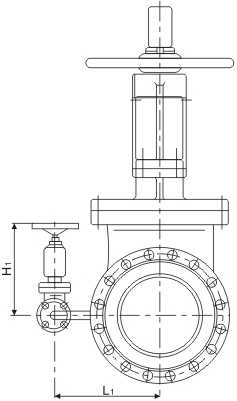

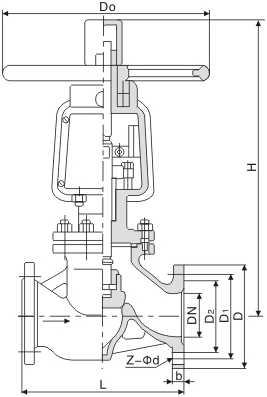

Oxygen Globe valve Oxygen Globe valve Oxygen Globe valve

产品型号 Type 公称通径DN PN2.5MPa WT (kg)
L D D1 D2 b Z-Φd H H1 L1 D0
YJ41W-25P
YJ41W-25T		 15 130 95 65 45 16 4-Φ14 190 - - 100 5
20 150 105 75 55 16 4-Φ14 213 - - 100 6.5
25 160 115 85 65 16 4-Φ18 236 - - 125 7
32 190 135 100 78 18 4-Φ18 312 - - 180 13.5
40 200 145 110 85 18 4-Φ18 328 - - 160 16
50 230 160 125 100 20 8-Φ18 450 - - 320 32
65 290 180 145 120 22 8-Φ18 530 - - 360 46
80 310 195 160 135 22 8-Φ18 560 - - 400 60
100 350 230 190 160 24 8-Φ23 618 - - 450 80
125 400 270 220 188 28 8-Φ25 675 - - 450 107
150 480 300 250 218 30 8-Φ25 743 - - 560 134
200 600 360 310 278 34 12-Φ25 850 - - 640 268.7
250 650 425 370 332 36 12-Φ30 975 340 380 720 449
300 750 485 430 390 40 16-Φ30 1115 340 415 800 663
400 950 610 550 505 48 16-Φ34 1380 340 465 900 1170
产品型号 Type 公称通径DN PN4.0MPa WT (kg)
L D D1 D2 b Z-Φd H H1 L1 D0
YJ41W-40P
YJ41W-40T		 15 130 95 65 45 16 4-Φ14 202 - - 100 5
20 150 105 75 55 16 4-Φ14 225 - - 100 6.5
25 160 115 85 65 16 4-Φ14 236 - - 125 7
32 190 135 100 78 18 4-Φ18 312 - - 180 13.5
40 200 145 110 85 18 4-Φ18 328 - - 160 16
50 230 160 125 100 20 4-Φ18 450 - - 320 32
65 290 180 145 120 22 8-Φ18 530 - - 360 45
80 310 195 160 135 22 8-Φ18 560 - - 400 60
100 350 230 190 160 24 8-Φ23 618 - - 450 80
125 400 270 220 188 28 8-Φ25 675 - - 450 105
150 480 300 250 218 30 8-Φ25 743 - - 560 134
200 600 375 320 282 38 12-Φ30 850 - - 640 266
250 650 445 385 345 42 12-Φ34 975 340 380 720 491
300 750 510 450 408 46 16-Φ34 1115 340 415 800 705
400 950 655 585 535 58 16-Φ41 1425 340 465 900 1234
