Vertical Check Valve
H42H-25 H42W-25 H42W-25P H42W-25R H42W-40P、H42W-40R、H42Y-40
立式止回阀 Vertical Check Valve

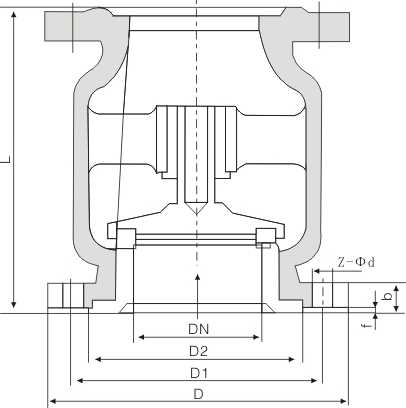

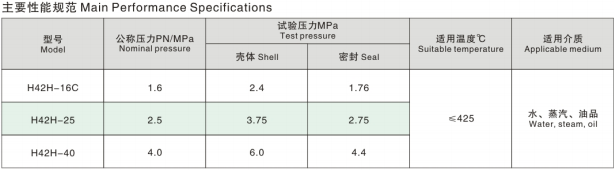

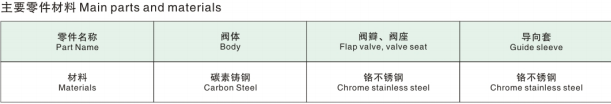

| 公称通径 DN(mm) | 尺寸 Size (mm) | 重量(kg) Weight |
||||||||
| L | D | D1 | D2 | b | f | Z-Φd | ||||
| 15 | 80 | 95 | 65 | 45 | 16 | - | 4-Φ14 | |||
| 20 | 90 | 105 | 75 | 55 | 16 | - | 4-Φ14 | |||
| 25 | 100 | 115 | 85 | 65 | 16 | - | 4-Φ14 | |||
| 32 | 110 | 135 | 100 | 78 | 16 | - | 4-Φ18 | |||
| 40 | 120 | 145 | 110 | 88 | 18 | - | 4-Φ18 | |||
| 50 | 140 | 160 | 125 | 100 | 20 | 3 | 4-Φ18 | 7.7 | ||
| 65 | 160 | 180 | 145 | 120 | 22 | 3 | 8-Φ18 | 10.8 | ||
| 80 | 185 | 195 | 160 | 135 | 22 | 3 | 8-Φ18 | 11.9 | ||
| 100 | 210 | 230 | 190 | 160 | 24 | 3 | 8-Φ23 | 19.1 | ||
| 125 | 275 | 275 | 220 | 188 | 28 | 3 | 8-Φ25 | - | ||
| 150 | 300 | 300 | 250 | 218 | 30 | 3 | 8-Φ25 | 46.4 | ||
| 200 | 380 | 360 | 310 | 278 | 34 | 3 | 12-Φ25 | 63.5 | ||
| 主要外形尺寸及重量Main size of outside & weight H42W-40P、H42W-40R、H42Y-40 | ||||||||||
| 公称通径 DN(mm) |
尺寸 Size (mm) | 重量(kg) Weight | ||||||||
| L | D | D1 | D2 | D6 | f | f1 | b | Z-Φd | ||
| 15 | 80 | 95 | 65 | 45 | 40 | 2 | 4 | 16 | 4-Φ14 | - |
| 20 | 90 | 105 | 75 | 55 | 51 | 2 | 4 | 16 | 4-Φ14 | - |
| 25 | 100 | 115 | 85 | 65 | 58 | 2 | 4 | 16 | 4-Φ14 | - |
| 32 | 110 | 135 | 100 | 78 | 66 | 2 | 4 | 18 | 4-Φ18 | - |
| 40 | 120 | 145 | 110 | 88 | 76 | 3 | 4 | 18 | 4-Φ18 | - |
| 50 | 140 | 160 | 125 | 102 | 88 | 3 | 4 | 20 | 4-Φ18 | 7.7 |
| 65 | 160 | 180 | 145 | 122 | 110 | 3 | 4 | 22 | 8-Φ18 | 10.8 |
| 80 | 185 | 195 | 160 | 135 | 121 | 3 | 4 | 22 | 8-Φ18 | 11.9 |
| 100 | 210 | 230 | 190 | 160 | 150 | 3 | 4.5 | 24 | 8-Φ23 | 19.1 |
| 125 | 275 | 270 | 220 | 188 | 176 | 3 | 4.5 | 28 | 8-Φ25 | - |
| 150 | 300 | 300 | 250 | 218 | 204 | 3 | 4.5 | 30 | 8-Φ25 | 46.4 |
| 200 | 380 | 375 | 310 | 282 | 260 | 3 | 4.5 | 38 | 12-Φ30 | 63.5 |
