Hydraulic、Pneumatic Angle Quick Opening Mud Valve，Diaphragm Hydraulic、Pneumatic Quick Opening Mud Valve
JM744X-10、JM644X-10

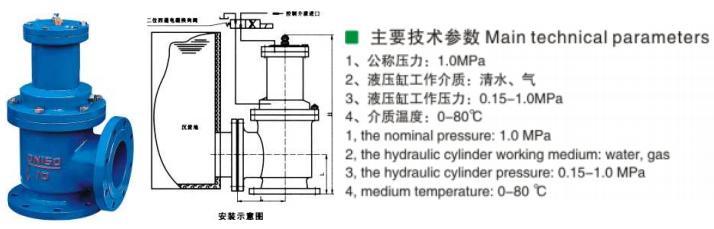

液压、气动角式快开排泥阀 Hydraulic、Pneumatic Angle Quick Opening Mud Valve
| 公称通径DN(mm) | 尺寸size ( mm ) | 接管螺纹G | 阀杆材料 Stem material |
||
| H | L1 | L2 | |||
| 80 | 480 | 135 | 125 | 1/2" | 不锈钢 Stainless steel |
| 100 | 500 | 145 | 125 | 1/2" | 不锈钢 Stainless steel |
| 150 | 620 | 175 | 145 | 1/2" | 不锈钢 Stainless steel |
| 200 | 735 | 225 | 185 | 1/2" | 不锈钢 Stainless steel |
| 250 | 805 | 260 | 205 | 1/2" | 不锈钢 Stainless steel |
| 300 | 940 | 280 | 245 | 3/4" | 不锈钢 Stainless steel |
| 350 | 1100 | 305 | 270 | 3/4" | 不锈钢 Stainless steel |
| 400 | 1200 | 340 | 310 | 1" | 不锈钢 Stainless steel |

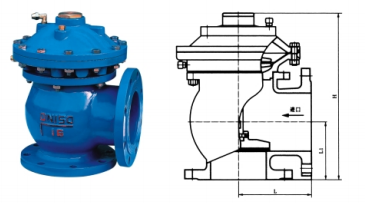

膜片式液压、气动快开排泥阀 Diaphragm Hydraulic、Pneumatic Quick Opening Mud Valve
