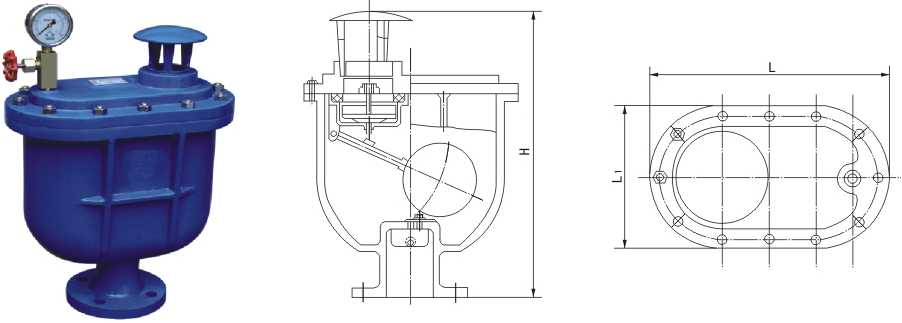

Carx Compound Exhaust Valve
CARX-10
复合式排气阀 Carx Compound Exhaust Valve
| 公称通径DN(mm) | |||||
| L | L1 | H | Z | ||
| 25 | 280 | 176 | 330 | - | - |
| 32 | 280 | 176 | 330 | - | |
| 50 | 360 | 208 | 475 | 4 | 17.5 |
| 65 | 360 | 208 | 475 | 4 | |
| 80 | 40 | 244 | 552 | 8 | 17.5 |
| 100 | 465 | 275 | 623 | 8 | |
| 150 | 537 | 332 | 686 | 8 | 22 |
| 200 | 537 | 332 | 686 | 8-12 | |
