Firemen's Butterfly Valve
BWS(F)X-0050 BWS(F)X-0065 BWS(F)X-0080 BWS(F)X-0100 BWS(F)X-0125 BWS(F)X-0150 BWS(F)X-0200 BWS(F)X-0250 BWS(F)X-0300 BWS(F)X-0350 BWS(F)X-0400

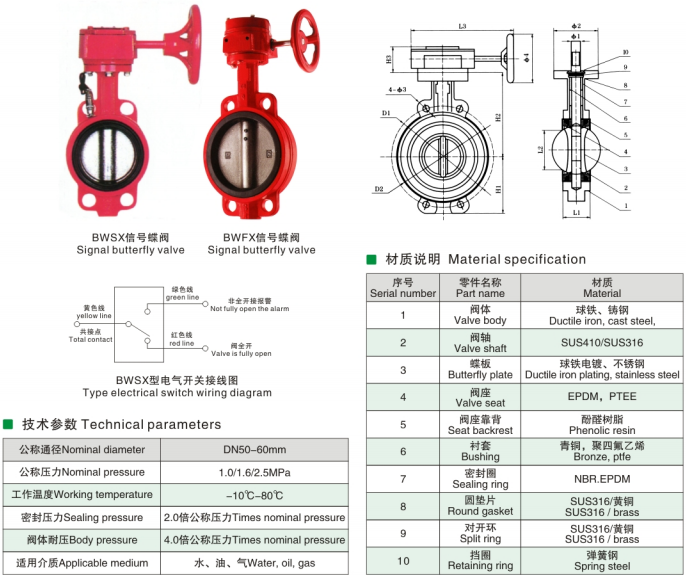

消防专用蝶阀 Firemen's Butterfly Valve
| 产品型号 Product model | 公称通径 DN | H1 | H2 | H3 | D1 | D2 | L1 | L2 | L3 | Φ1 | Φ2 | Φ3 | Φ4 |
| BWS(F)X-0050 | 50 | 70 | 130 | 68 | 120 | 95 | 43 | 32 | 245 | 12.6 | 70 | 23 | 152 |
| BWS(F)X-0065 | 65 | 76 | 143 | 68 | 136 | 109 | 46 | 47 | 245 | 12.6 | 70 | 26-3 | 152 |
| BWS(F)X-0080 | 80 | 86 | 155 | 68 | 160 | 124 | 46 | 65 | 245 | 12.6 | 70 | 18 | 152 |
| BWS(F)X-0100 | 100 | 104 | 170 | 68 | 182 | 153 | 52 | 91 | 245 | 15.8 | 90 | 24.5 | 152 |
| BWS(F)X-0125 | 125 | 118 | 190 | 68 | 215 | 179 | 56 | 112 | 245 | 19 | 90 | 23 | 152 |
| BWS(F)X-0150 | 150 | 132 | 210 | 68 | 238 | 206 | 56 | 146 | 245 | 19 | 90 | 25 | 152 |
| BWS(F)X-0200 | 200 | 167 | 243 | 85 | 295 | 264 | 60 | 194 | 400 | 22.1 | 115 | 25 | 300 |
| BWS(F)X-0250 | 250 | 198 | 282 | 85 | 357 | 316 | 68 | 242 | 400 | 28.5 | 115 | 29 | 300 |
| BWS(F)X-0300 | 300 | 239 | 310 | 52 | 407 | 373 | 68 | 292 | 400 | 31.7 | 140 | 29 | 305 |
| BWS(F)X-0350 | 350 | 267 | 368 | 82 | 467 | 436 | 78 | 325 | 400 | 31.7 | 140 | 30 | 305 |
| BWS(F)X-0400 | 400 | 309 | 400 | 121 | 515 | 488 | 102 | 380 | 431 | 33.15 | 197 | 26/30 | 290 |
