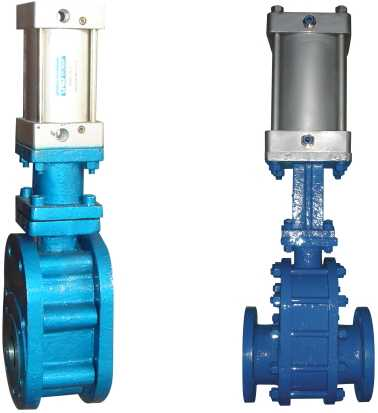

Corrosion-resistant Ceramic Discharge Valve

Corrosion-resistant Ceramic Discharge Valve

Z644TC Z674TC

PRODUCT DETAILS

耐腐陶瓷出料陶 Corrosion-resistant Ceramic Discharge Valve

Corrosion-resistant Ceramic Discharge Valve

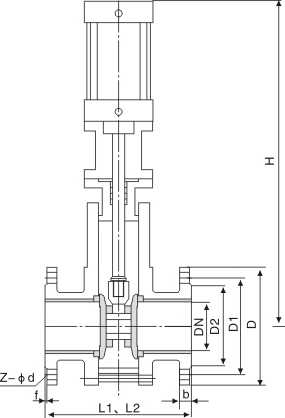

型号 Type	压力P	尺寸Size
型号 Type	压力P	DN	≈L1	≈L2	D	D1	D2	n-M	Z-Φd	≈H
Z644TC Z674TC	0.6MPa	50	121	229	140	110	90	4-M12	4-Φ14	480
		65	121	229	160	130	110	4-M12	4-Φ14	500
		80	130	255	185	150	125	4-M16	4-Φ18	630
		100	150	298	205	170	145	4-M16	4-Φ18	690
		125	170	310	235	200	175	8-M16	8-Φ18	720
		150	170	360	260	225	200	8-M16	8-Φ18	810
		200	200	380	315	280	255	8-M16	8-Φ18	950
		250	250	450	370	335	310	12-M16	12-Φ18	1180
		300	300	500	435	395	362	12-M20	12-Φ23	1390
		350	350	550	485	445	412	12-M20	12-Φ23	1500
	1.0MPa	50	121	229	160	125	100	4-M16	4-Φ18	480
		65	121	229	180	145	120	4-M16	4-Φ18	500
		80	130	255	195	160	135	8-M16	8-Φ18	630
		100	150	298	215	180	155	8-M16	8-Φ18	690
		125	170	310	245	210	185	8-M16	8-Φ18	720
		150	170	360	280	240	210	8-M20	8-Φ23	810
		200	200	380	335	295	265	8-M20	8-Φ23	950
		250	250	450	390	350	320	12-M20	12-Φ23	1180
		300	300	500	440	400	368	12-M20	12-Φ23	1390
		350	350	550	500	460	428	16-M20	16-Φ23	1500
	1.6MPa	50	121	229	160	125	100	4-M16	4-Φ18	480
		65	121	229	180	145	120	4-M16	4-Φ18	500
		80	130	255	195	160	135	8-M16	8-Φ18	630
		100	150	298	215	180	155	8-M16	8-Φ18	690
		125	170	310	245	210	185	8-M16	8-Φ18	720
		150	170	360	280	240	210	8-M20	8-Φ23	810
		200	200	380	335	295	265	12-M20	12-Φ23	950
		250	250	450	405	355	320	12-M22	12-Φ25	1180
		300	300	500	460	410	375	12-M22	12-Φ25	1390
		350	350	550	520	470	435	16-M22	16-Φ25	1500
