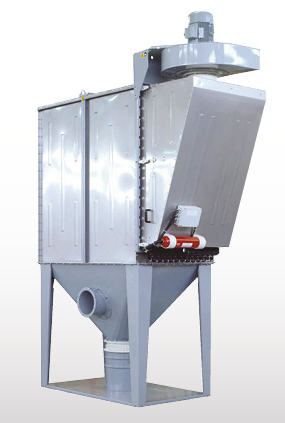

Features

Filter surface: 54 m² (580 sq ft)

Air volume: up to 6,000 m³/h (up to 3,530 cfm)

Pocket-type filter elements

Compressed air pulse-jet cleaning at 5 ~ 6 bar (72 ~ 87 PSI)

Dust emission < 10 mg/Nm3

Compact design with optimum volume-filter surface ratio

Polygonal stainless-steel casing

Carbon steel seal frame powder-coated in RAL 7001 (silver-grey)

Horizontally mounted filter elements

Hinged front access door for comfortable inspection and replacement of filter elements

11.0 kW (15.0 HP) low-noise suction fan integrated into access door

Multi-voltage, multi-functional electronic control panel

Differential pressure meter (MDPE) Designed for outdoor installation

Benefits

Low dust emission level due to BIA/IFA-certified WAM filter elements and media

Advanced dust filtration technology

Compact design and corrosion-free collector casing

Quick and safe filter element replacement from clean air side

User-friendly design offering comfortable maintenance height

Multiple voltage design meeting different electric specifications
