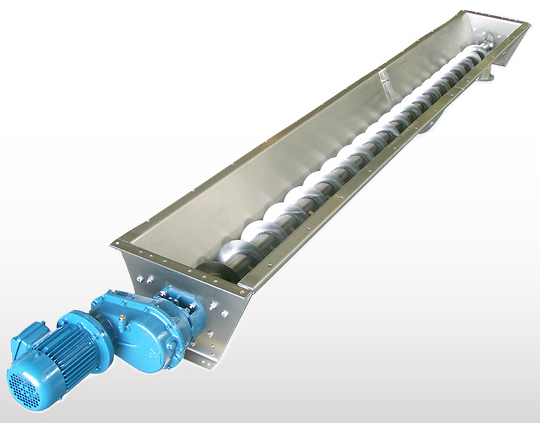

Stainless Steel Trough Screw Conveyors - CX

Features

Standard 304L or 316L stainless steel design

Troughs and screws in modular lengths

WAM standard polygonal or cylindrical inlet and outlet spouts

End bearing assemblies with externally adjustable shaft seal (stuffing box, air or gas-purged, others)

Wide range of intermediate hanger bearings appropriate for the application (self-lubricating on request)

End flanges welded orthogonally on trough on special jigs

End plates carrying flanged end bearing assemblies or closing-off-trough plates

Modular length helicoid screw flighting with square or variable pitch welded on centre pipe with shaft coupling at each end

Screw sections connected through splined or bolted shaft couplings

Screws accurately balanced

Bearing assemblies entirely designed by WAM providing the most suitable model for each application

Benefits

Perfectly smooth troughs for minimum material residue

WAM drive units with integrated end bearing assembly and adjustable shaft seal (screws run perfectly balanced due to drive unit directly mounted on screw pipe; substitutes coupling or chain transmission with special drive mount)
