Bearing

UCF201 UCF202 UCF203 UCF204 UCF205 UCF206 UCF207 UCF208 UCF209 UCF210

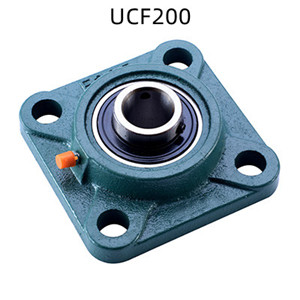

Square Pillow Block

PRODUCT DETAILS

The outer spherical bearing is actually a variant of the deep groove ball bearing. At the same time, this type of bearing also has a certain self-alignment in design and is easy to install. Commonly used seats include vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), annular seat (C), slider seat, etc. ( T).

UCF201 UCF202 UCF203 UCF204 UCF205 UCF206 UCF207 UCF208 UCF209 UCF210

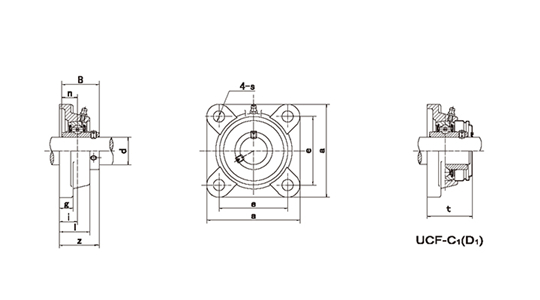

Model	Model	Bolt	d	a	i	e	W.T
UCF201	UC201	M10	12	86	25.5	64	0.67
UCF202	UC202	M10	15	86	25.5	64	0.66
UCF203	UC203	M10	17	86	25.5	64	0.64
UCF204	UC204	M10	20	86	25.5	64	0.62
UCF205	UC205	M10	25	95	27	70	0.83
UCF206	UC206	M10	30	108	31	83	1.14
UCF207	UC207	M12	35	117	34	92	1.47
UCF208	UC208	M14	40	130	36	102	2
UCF209	UC209	M14	45	137	38	105	2.4
UCF210	UC210	M16	50	143	40	111	2.6
