UCF211 UCF212 UCF213 UCF214 UCF215 UCF216 UCF217 UCF218

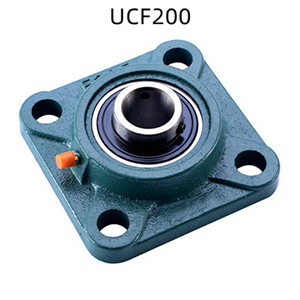

Square Pillow Block

PRODUCT DETAILS

UCF211 UCF212 UCF213 UCF214 UCF215 UCF216 UCF217 UCF218

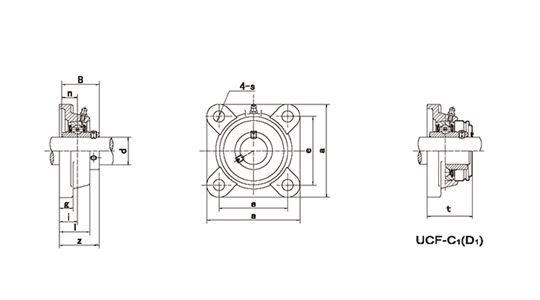

Model	Model	Bolt	d	a	i	e	W.T
UCF211	UC211	M16	55	162	43	130	3.6
UCF212	UC212	M16	60	175	48	143	4.8
UCF213	UC213	M20	65	187	50	149	5.8
UCF214	UC214	M20	70	193	54	152	6.6
UCF215	UC215	M20	75	200	56	159	7.7
UCF216	UC216	M20	80	208	58	165	8.2
UCF217	UC217	M20	85	220	63	175	9.6
UCF218	UC218	M22	90	235	68	187	12.1

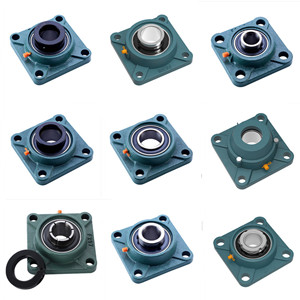

The outer spherical bearing is actually a variant of the deep groove ball bearing. At the same time, this type of bearing also has a certain self-alignment in design and is easy to install. Commonly used seats include vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), annular seat (C), slider seat, etc. ( T).
