UCF316 UCF317 UCF318 UCF319 UCF320 UCF322 UCF324 UCF326 UCF328

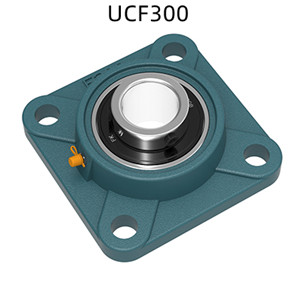

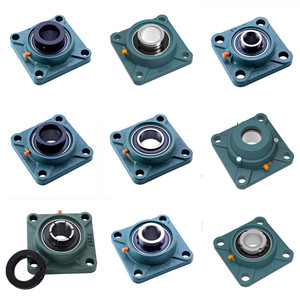

Square Pillow Block

PRODUCT DETAILS

UCF316 UCF317 UCF318 UCF319 UCF320 UCF322 UCF324 UCF326 UCF328

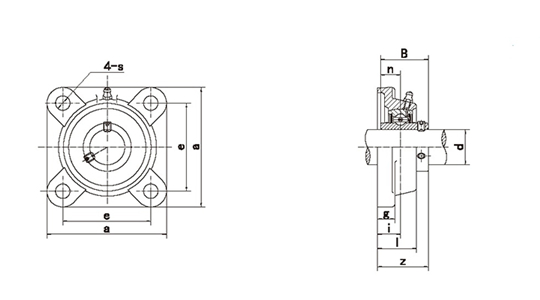

Model	Size ( mm / in. )										Bolt mm	Bearing	Bearing housing	W.T(kg)
Model	d	a	e	i	g	l	s	z	B	n	Bolt mm	Bearing	Bearing housing	W.T(kg)
UCF316	80	250	196	38	27	68	31	90	86	34	M27	UC316	F316	13.3
UCF317	85	260	204	44	27	74	31	100	96	40	M27	UC317	F317	15.3
UCF318	90	280	216	44	30	76	35	100	96	40	M30	UC318	F318	18.6
UCF319	95	290	228	59	30	94	35	121	103	41	M30	UC319	F319	22.8
UCF320	100	310	242	59	32	94	38	125	108	42	M33	UC320	F320	26.1
UCF322	110	340	266	60	35	96	41	131	117	46	M36	UC322	F322	34.9
UCF324	120	370	290	65	40	110	41	140	126	51	M36	UC324	F324	46.8
UCF326	130	410	320	65	45	115	41	146	135	54	M36	UC326	F326	62.6
UCF328	140	450	350	75	55	125	41	161	145	59	M36	UC328	F328	85.5

The outer spherical bearing is actually a variant of the deep groove ball bearing. At the same time, this type of bearing also has a certain self-alignment in design and is easy to install. Commonly used seats include vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), annular seat (C), slider seat, etc. ( T).
