UCFL201 UCFL202 UCFL203 UCFL204 UCFL205 UCFL206 UCFL207 UCFL208 UCFL209 UCFL210

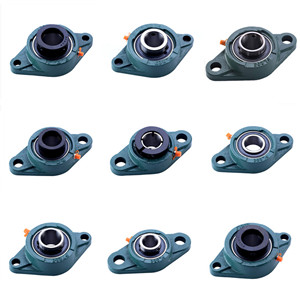

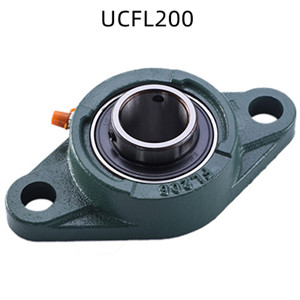

Rhombus Pillow Block Bearings

PRODUCT DETAILS

UCFL201 UCFL202 UCFL203 UCFL204 UCFL205 UCFL206 UCFL207 UCFL208 UCFL209 UCFL210

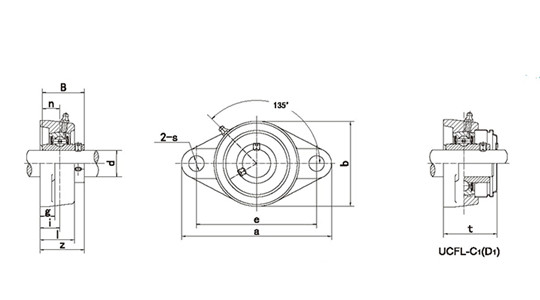

Model	Size ( mm )												Bolt mm	Bearing	Bearing housing	W.T(kg)
Model	d	a	e	i	g	l	s	b	z	t	B	n	Bolt mm	Bearing	Bearing housing	W.T(kg)
UCFL201	12	113	90	15	11	25.5	12	60	33.3	37.5	31	12.7	M10	UC201	FL201	0.45
UCFL202	15	113	90	15	11	25.5	12	60	33.3	37.5	31	12.7	M10	UC202	FL202	0.44
UCFL203	17	113	90	15	11	25.5	12	60	33.3	37.5	31	12.7	M10	UC203	FL203	0.43
UCFL204	20	113	90	15	11	25.5	12	60	33.3	37.5	31	12.7	M10	UC204	FL204	0.4
UCFL205	25	130	99	16	13	27	16	68	35.8	40	34.1	14.3	M14	UC205	FL205	0.58
UCFL206	30	148	117	18	13	31	16	80	40.2	44.5	38.1	15.9	M14	UC206	FL206	0.83
UCFL207	35	161	130	19	14	34	16	90	44.4	48.5	42.9	17.5	M14	UC207	FL207	1.1
UCFL208	40	175	144	21	14	36	16	100	51.2	55.5	49.2	19	M14	UC208	FL208	1.42
UCFL209	45	188	148	22	15	38	19	108	52.2	56.5	49.2	19	M16	UC209	FL209	1.75
UCFL210	50	197	157	22	15	40	19	115	54.6	59.5	51.6	19	M16	UC210	FL210	2.02

The outer spherical bearing is actually a variant of the deep groove ball bearing. At the same time, this type of bearing also has a certain self-alignment in design and is easy to install. Commonly used seats include vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), annular seat (C), slider seat, etc. ( T).
