UCFL211 UCFL212 UCFL213 UCFL214 UCFL215 UCFL216 UCFL217 UCFL218

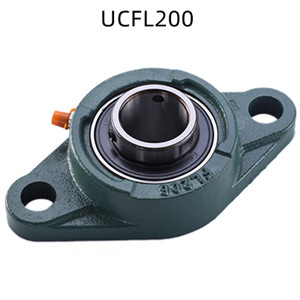

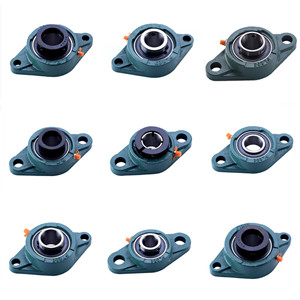

Rhombus Pillow Block Bearings

PRODUCT DETAILS

UCFL211 UCFL212 UCFL213 UCFL214 UCFL215 UCFL216 UCFL217 UCFL218

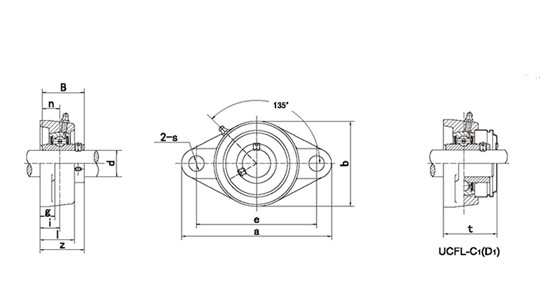

Model	Size ( mm )												Bolt mm	Bearing	Bearing housing	W.T(kg)
Model	d	a	e	i	g	l	s	b	z	t	B	n	Bolt mm	Bearing	Bearing housing	W.T(kg)
UCFL211	55	224	184	25	18	43	19	130	58.4	63	55.6	22.2	M16	UC211	FL211	2.79
UCFL212	60	250	202	29	18	48	23	140	68.7	73.5	65.1	25.4	M20	UC212	FL212	3.65
UCFL213	65	258	210	30	22	50	23	155	69.7	74.5	65.1	25.4	M20	UC213	FL213	4.56
UCFL214	70	265	216	31	22	54	23	160	75.4	81.5	74.6	30.2	M20	UC214	FL214	5.12
UCFL215	75	275	225	34	22	56	23	165	78.5	83.5	77.8	33.3	M20	UC215	FL215	5.64
UCFL216	80	290	233	34	22	58	25	180	83.3	88.5	82.6	33.3	M22	UC216	FL216	6.91
UCFL217	85	305	248	36	24	63	25	190	87.5	92.6	85.7	34.1	M22	UC217	FL217	8.27
UCFL218	90	320	265	40	24	68	25	205	96.3	101.5	96	39.7	M22	UC218	FL218	10.13

The outer spherical bearing is actually a variant of the deep groove ball bearing. At the same time, this type of bearing also has a certain self-alignment in design and is easy to install. Commonly used seats include vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), annular seat (C), slider seat, etc. ( T).
