UCFL316 UCFL317 UCFL318 UCFL319 UCFL320 UCFL322 UCFL324 UCFL326 UCFL328

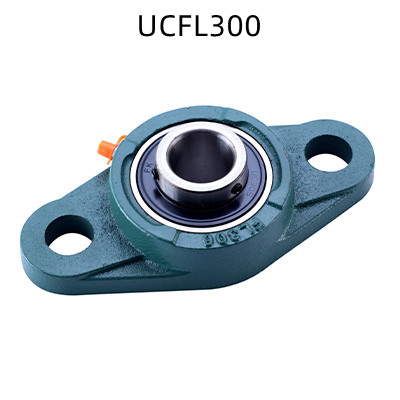

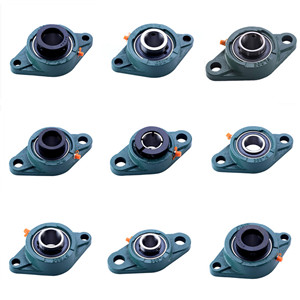

Rhombus Pillow Block Bearings

PRODUCT DETAILS

UCFL316 UCFL317 UCFL318 UCFL319 UCFL320 UCFL322 UCFL324 UCFL326 UCFL328

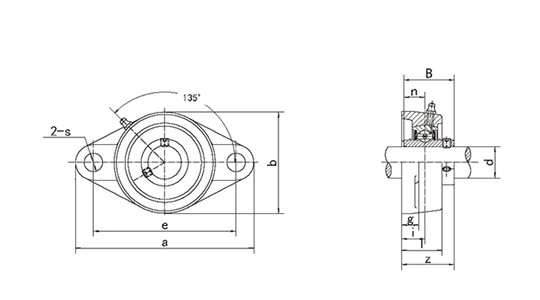

Model	Size ( mm )											Bolt mm	Bearing	Bearing housing	W.T(kg)
Model	d	a	e	i	g	l	s	b	z	B	n	Bolt mm	Bearing	Bearing housing	W.T(kg)
UCFL316	80	355	285	38	32	68	38	210	90	86	34	M33	UC316	FL316	12.419
UCFL317	85	370	300	44	32	74	38	220	100	96	40	M33	UC317	FL317	14.338
UCFL318	90	385	315	44	36	76	38	235	100	96	40	M33	UC318	FL318	16.869
UCFL319	95	405	330	59	40	94	41	250	121	103	41	M36	UC319	FL319	21.712
UCFL320	100	440	360	59	40	94	44	270	125	108	42	M39	UC320	FL320	25.95
UCFL322	110	470	390	60	42	96	44	300	131	117	46	M39	UC322	FL322	33.05
UCFL324	120	520	430	65	48	110	47	330	140	126	51	M42	UC324	FL324	46.47
UCFL326	130	550	460	65	50	115	47	360	146	135	54	M42	UC326	FL326	57.38
UCFL328	140	600	500	75	60	125	51	400	161	145	59	M45	UC328	FL328	79.08

The outer spherical bearing is actually a variant of the deep groove ball bearing. At the same time, this type of bearing also has a certain self-alignment in design and is easy to install. Commonly used seats include vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), annular seat (C), slider seat, etc. ( T).
