UCFL305 UCFL306 UCFL307 UCFL308 UCFL309 UCFL310 UCFL311 UCFL312 UCFL313 UCFL314 UCFL315

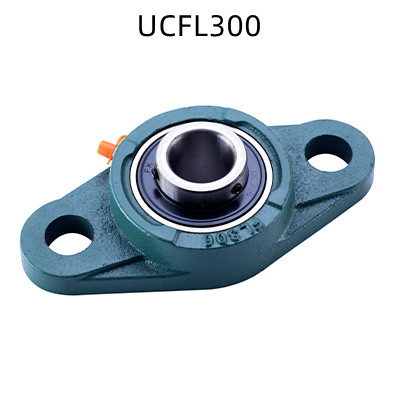

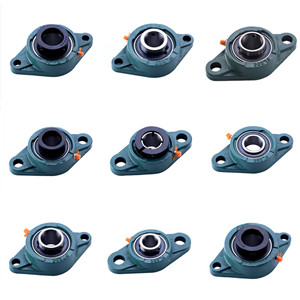

Rhombus Pillow Block Bearings

PRODUCT DETAILS

UCFL305 UCFL306 UCFL307 UCFL308 UCFL309 UCFL310 UCFL311 UCFL312 UCFL313 UCFL314 UCFL315

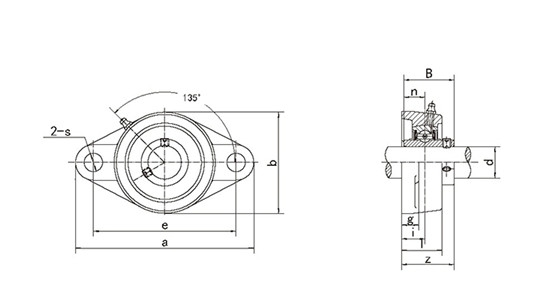

Model	Size ( mm )											Bolt mm	Bearing	Bearing housing	W.T(kg)
Model	d	a	e	i	g	l	s	b	z	B	n	Bolt mm	Bearing	Bearing housing	W.T(kg)
UCFL305	25	150	113	16	13	29	19	80	39	38	15	M16	UC305	FL305	0.891
UCFL306	30	180	134	18	15	32	23	90	44	43	17	M20	UC306	FL306	1.365
UCFL307	35	185	141	20	16	36	23	100	49	48	19	M20	UC307	FL307	1.674
UCFL308	40	200	158	23	17	40	23	112	56	52	19	M20	UC308	FL308	2.199
UCFL309	45	230	177	25	18	44	25	125	60	57	22	M22	UC309	FL309	3.117
UCFL310	50	240	187	28	19	48	25	140	67	61	22	M22	UC310	FL310	3.993
UCFL311	55	250	198	30	20	52	25	150	71	66	25	M22	UC311	FL311	4.79
UCFL312	60	270	212	33	22	56	31	160	78	71	26	M27	UC312	FL312	5.771
UCFL313	65	295	240	33	25	58	31	175	78	75	30	M27	UC313	FL313	7.377
UCFL314	70	315	250	36	28	61	35	185	81	78	33	M30	UC314	FL314	8.716
UCFL315	75	320	260	39	30	66	35	195	89	82	32	M30	UC315	FL315	10.02

The outer spherical bearing is actually a variant of the deep groove ball bearing. At the same time, this type of bearing also has a certain self-alignment in design and is easy to install. Commonly used seats include vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), annular seat (C), slider seat, etc. ( T).
