UCT316 UCT317 UCT318 UCT319 UCT320 UCT322 UCT324 UCT326 UCT328

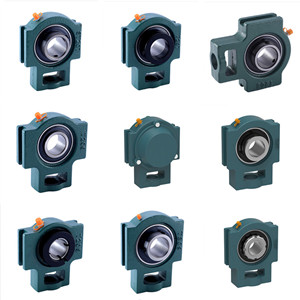

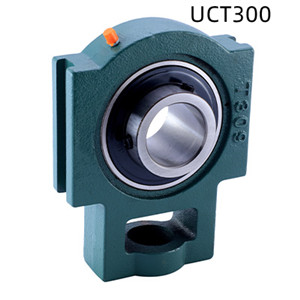

Slide block bearing

PRODUCT DETAILS

UCT316 UCT317 UCT318 UCT319 UCT320 UCT322 UCT324 UCT326 UCT328

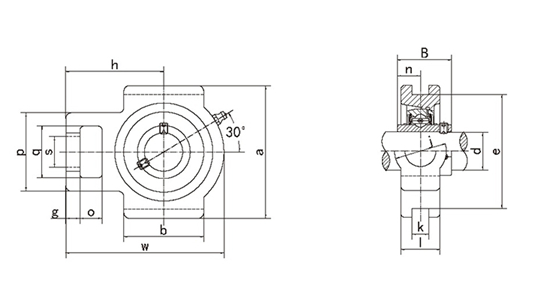

Model	Size ( mm )																Bearing	Bearing housing	W.T(kg)
Model	d	o	g	p	q	s	b	k	e	a	w	j	l	h	B	n	Bearing	Bearing housing	W.T(kg)
UCT316	80	42	30	150	98	53	160	30	204	230	282	102	60	174	86	34	UC316	T316	15.8
UCT317	85	42	32	152	98	53	170	32	214	240	298	102	64	183	96	40	UC317	T317	18.6
UCT318	90	46	32	160	106	57	175	32	228	255	312	110	66	192	96	40	UC318	T318	21
UCT319	95	46	33	165	106	57	180	35	240	270	322	110	72	197	103	41	UC319	T319	24.6
UCT320	100	48	32	175	115	59	200	35	260	290	345	120	75	210	108	42	UC320	T320	29.9
UCT322	110	52	38	185	125	65	215	38	285	320	385	130	80	235	117	46	UC322	T322	39.4
UCT324	120	60	42	210	140	70	230	45	320	355	432	140	90	267	126	51	UC324	T324	54.2
UCT326	130	65	45	220	150	75	240	50	350	385	465	150	100	285	135	54	UC326	T326	68.4
UCT328	140	70	50	230	160	80	255	50	380	415	515	155	100	315	145	59	UC328	T328	82.9

The outer spherical bearing is actually a variant of the deep groove ball bearing. At the same time, this type of bearing also has a certain self-alignment in design and is easy to install. Commonly used seats include vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), annular seat (C), slider seat, etc. ( T).
