Bearing

UCT305 UCT306 UCT307 UCT308 UCT309 UCT310 UCT311 UCT312 UCT313 UCT314 UCT315

Slide block bearing

PRODUCT DETAILS

UCT305 UCT306 UCT307 UCT308 UCT309 UCT310 UCT311 UCT312 UCT313 UCT314 UCT315

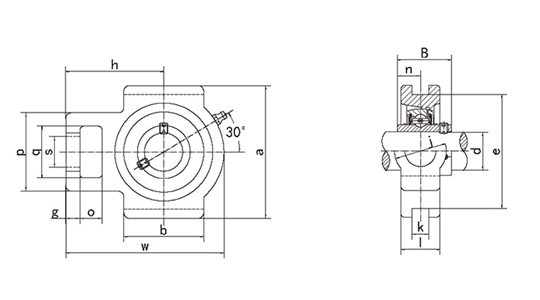

Model	Size ( mm )																Bearing	Bearing housing	W.T(kg)
Model	d	o	g	p	q	s	b	k	e	a	w	j	l	h	B	n	Bearing	Bearing housing	W.T(kg)
UCT305	25	16	14	62	36	26	65	12	80	89	122	36	26	76	38	15	UC305	T305	1.2
UCT306	30	18	16	70	41	28	74	16	90	100	137	41	28	85	43	17	UC306	T306	1.7
UCT307	35	20	17	75	45	30	80	16	100	111	150	45	32	94	48	19	UC307	T307	2.3
UCT308	40	22	19	83	50	32	89	18	112	124	162	50	34	100	52	19	UC308	T308	2.9
UCT309	45	24	20	90	55	34	97	18	125	138	178	55	38	110	57	22	UC309	T309	4
UCT310	50	27	22	98	61	37	106	20	140	151	192	61	40	118	61	22	UC310	T310	5
UCT311	55	29	23	105	66	39	115	22	150	163	207	66	44	127	66	25	UC311	T311	6.2
UCT312	60	31	25	113	71	41	123	22	160	178	220	71	46	135	71	26	UC313	T312	7.5
UCT313	65	32	27	116	70	43	134	26	170	190	238	80	50	146	75	30	UC313	T313	9.3
UCT314	70	36	27	130	85	46	140	26	180	202	252	90	52	155	78	33	UC314	T314	10.9
UCT315	75	36	27	132	85	46	150	26	192	216	262	90	55	160	82	32	UC315	T315	12.7

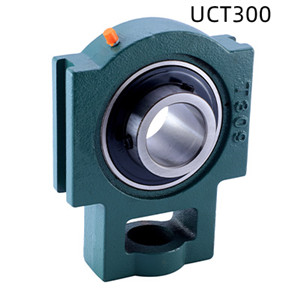

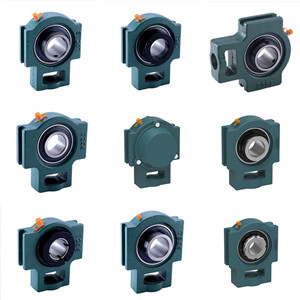

The outer spherical bearing is actually a variant of the deep groove ball bearing. At the same time, this type of bearing also has a certain self-alignment in design and is easy to install. Commonly used seats include vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), annular seat (C), slider seat, etc. ( T).
