UKFC212;H2312 UKFC213;H2313 UKFC215;H2315 UKFC216;H2316 UKFC217;H2317 UKFC218;H2318

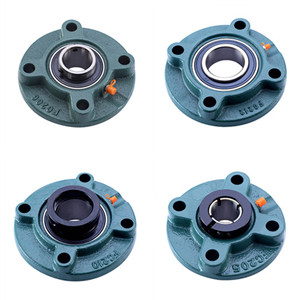

Boss round housed bearing

PRODUCT DETAILS

UKFC212;H2312 UKFC213;H2313 UKFC215;H2315 UKFC216;H2316 UKFC217;H2317 UKFC218;H2318

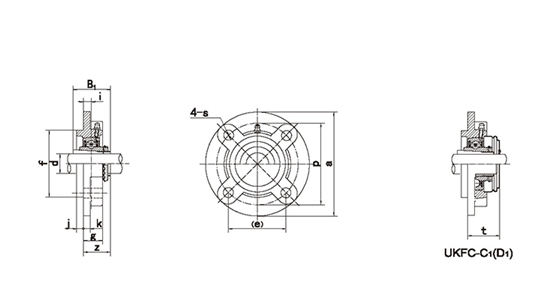

Model	Size ( mm )													Bolt mm	Bearing	Bearing housing	W.T(kg)
Model	d	a	p	(e)	i	s	j	k	g	f	z	t	B1	Bolt mm	Bearing	Bearing housing	W.T(kg)
UKFC212;H2312	55	195	160	113.1	17	19	12	15	36	135	48	61.5	62	M16	UK212;H2312	FC212	4.77
UKFC213;H2313	60	205	170	120.2	16	19	14	15	36	145	49	60.5	65	M16	UK213;H2313	FC213	5.41
UKFC215;H2315	65	220	184	130.1	18	19	16	18	40	160	53.5	67.5	73	M16	UK215;H2315	FC215	7.25
UKFC216;H2316	70	240	200	141.4	18	23	16	18	42	170	57	72.5	78	M20	UK216;H2316	FC216	8.9
UKFC217;H2317	75	250	208	147.1	18	23	18	20	45	180	59	74.6	82	M20	UK217;H2317	FC217	10.6
UKFC218;H2318	80	265	220	155.5	22	23	18	20	50	190	64.5	83.5	86	M20	UK218;H2318	FC218	12.54

The outer spherical bearing is actually a variant of the deep groove ball bearing. At the same time, this type of bearing also has a certain self-alignment in design and is easy to install. Commonly used seats include vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), annular seat (C), slider seat, etc. ( T).
