UKFC205;H2305 UKFC206;H2306 UKFC207;H2307 UKFC208;H2308 UKFC209;H2309 UKFC210;H2310 UKFC211;H2311

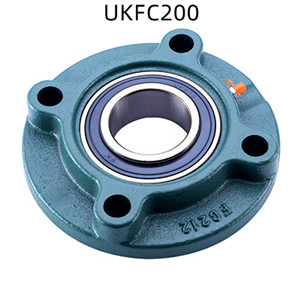

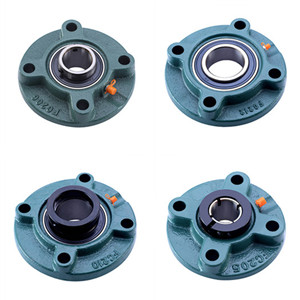

Boss round housed bearing

PRODUCT DETAILS

UKFC205;H2305 UKFC206;H2306 UKFC207;H2307 UKFC208;H2308 UKFC209;H2309 UKFC210;H2310 UKFC211;H2311

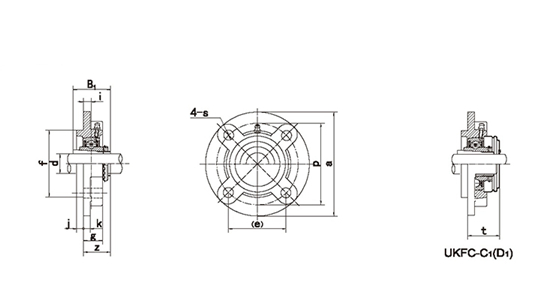

Model	Size ( mm )													Bolt mm	Bearing	Bearing housing	W.T(kg)
Model	d	a	p	(e)	i	s	j	k	g	f	z	t	B1	Bolt mm	Bearing	Bearing housing	W.T(kg)
UKFC205;H2305	20	115	90	63.6	10	12	6	7	21	70	29.5	34	35	M10	UK205;H2305	FC205	0.93
UKFC206;H2306	25	125	100	70.7	10	12	8	8	23	80	31	36.5	38	M10	UK206;H2306	FC206	1.24
UKFC207;H2307	30	135	110	77.8	11	14	8	9	26	90	33.5	41	43	M12	UK207;H2307	FC207	1.6
UKFC208;H2308	35	145	120	84.8	11	14	10	9	26	100	35.5	45.5	46	M12	UK208;H2308	FC208	1.92
UKFC209;H2309	40	160	132	93.3	10	16	12	14	26	105	36	44.5	50	M14	UK209;H2309	FC209	2.65
UKFC210;H2310	45	165	138	97.6	10	16	12	14	28	110	37.5	47.5	55	M14	UK210;H2310	FC210	2.96
UKFC211;H2311	50	185	150	106.1	13	19	12	15	31	125	41.5	51	59	M16	UK211;H2311	FC211	4.02

The outer spherical bearing is actually a variant of the deep groove ball bearing. At the same time, this type of bearing also has a certain self-alignment in design and is easy to install. Commonly used seats include vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), annular seat (C), slider seat, etc. ( T).
