UCPA201 UCPA202 UCPA203 UCPA204 UCPA205 UCPA206 UCPA207 UCPA208 UCPA209 UCPA210 UCPA211 UCPA212 UCPA213

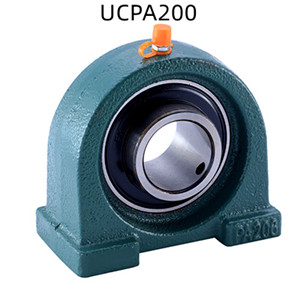

Outer spherical housing

PRODUCT DETAILS

UCPA201 UCPA202 UCPA203 UCPA204 UCPA205 UCPA206 UCPA207 UCPA208 UCPA209 UCPA210 UCPA211 UCPA212 UCPA213

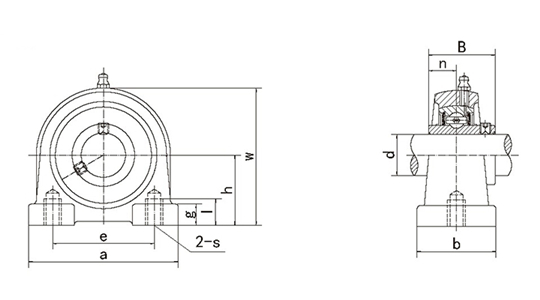

Model	Size ( mm )											Bolt mm	Bearing	Bearing housing	W.T(kg)
Model	d	h	a	e	b	s	g	l	w	b	n	Bolt mm	Bearing	Bearing housing	W.T(kg)
UCPA201	12	30.2	76	52	40	M10	11	15	62	31	12.7	M10	UC201	PA201	0.63
UCPA202	15	1-3/16	3	2-3/64	37150	M10	7/16	19/32	2-7/16	1.2205	0.5	M10	UC202	PA202	0.62
UCPA203	17	1-3/16	3	2-3/64	37150	M10	7/16	19/32	2-7/16	1.2205	0.5	M10	UC203	PA203	0.61
UCPA204	20	1-3/16	3	2-3/64	37150	M10	7/16	19/32	2-7/16	1.2205	0.5	M10	UC204	PA204	0.589
UCPA205	25	36.5	84	56	38	M10	12	15	72	34.1	14.3	M10	UC205	PA205	0.756
UCPA206	30	42.9	94	66	50	M14	12	18	84	38.1	15.9	M14	UC206	PA206	1.116
UCPA207	35	47.6	110	80	55	M14	13	20	95	42.9	17.5	M14	UC207	PA207	1.546
UCPA208	40	49.2	116	84	58	M14	13	20	100	49.2	19	M14	UC208	PA208	1.798
UCPA209	45	54.2	120	90	60	M14	13	25	108	49.2	19	M14	UC209	PA209	2.053
UCPA210	50	57.2	130	94	64	M16	14	25	116	51.6	19	M16	UC210	PA210	2.556
UCPA211	55	63.5	140	104	66	M16	14	25	125	55.6	22.2	M16	UC211	PA211	3.138
UCPA212	60	69.9	150	114	68	M16	15	25	138	65.1	25.4	M16	UC212	PA212	4.12
UCPA213	65	76.2	160	124	70	M16	15	25	150	65.1	25.4	M16	UC213	PA213	4.915

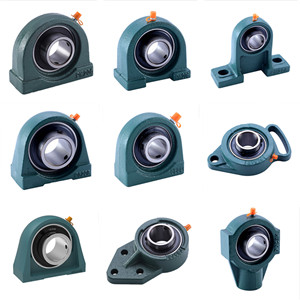

The outer spherical bearing is actually a variant of the deep groove ball bearing. At the same time, this type of bearing also has a certain self-alignment in design and is easy to install. Commonly used seats include vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), annular seat (C), slider seat, etc. ( T).
