UCFA201 UCFA202 UCFA203 UCFA204 UCFA205 UCFA206 UCFA207 UCFA208 UCFA209 UCFA210 UCFA211 UCFA212 UCFA213

Outer spherical housing

PRODUCT DETAILS

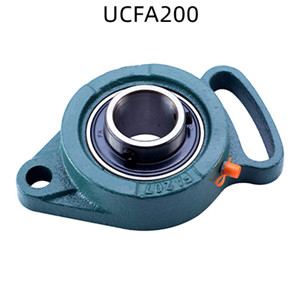

UCFA201 UCFA202 UCFA203 UCFA204 UCFA205 UCFA206 UCFA207 UCFA208 UCFA209 UCFA210 UCFA211 UCFA212 UCFA213

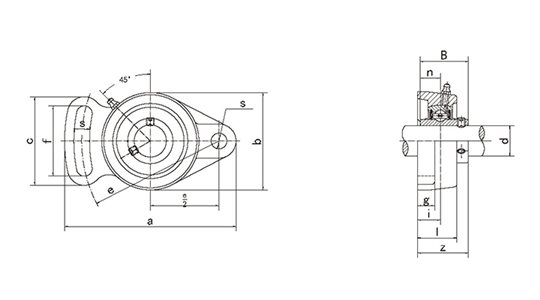

Model	Size ( mm )													Bolt mm	Bearing	Bearing housing	W.T(kg)
Model	d	a	e	i	g	l	s	b	z	f	c	B	n	Bolt mm	Bearing	Bearing housing	W.T(kg)
UCFA201	12	98	78	15	12	25.5	10	60	33.3	40	50	31	12.7	M8	UC201	FA201	0.46
UCFA202	15	3-55/64	3-5/64	19/32	15/32	1	25/64	37323	37027	1-37/64	1-31/32	1.2205	0.5	5/16	UC202	FA202	0.45
UCFA203	17	3-55/64	3-5/64	19/32	15/32	1	25/64	37323	37027	1-37/64	1-31/32	1.2205	0.5	5/16	UC203	FA203	0.44
UCFA204	20	3-55/64	3-5/64	19/32	15/32	1	25/64	37323	37027	1-37/64	1-31/32	1.2205	0.5	5/16	UC204	FA204	0.42
UCFA205	25	124	98	16	14	27	13	70	35.8	51	65	34.1	14.3	M10	UC205	FA205	0.65
UCFA206	30	141	115	18	14	31	13	83	40.2	58	72	38.1	15.9	M10	UC206	FA206	0.95
UCFA207	35	155	128	19	16	34	15	96	44.4	66	82	42.9	17.5	M12	UC207	FA207	1.33
UCFA208	40	171	142	21	16	38	15	105	51.2	71	87	49.2	19	M12	UC208	FA208	1.73
UCFA209	45	179	146	22	18	40	17	111	52.2	72	90	49.2	19	M14	UC209	FA209	1.98
UCFA210	50	189	155	22	18	40	17	116	54.6	76	94	51.6	19	M14	UC210	FA210	2.12
UCFA211	55	216	182	25	20	44	17	133	58.4	86	104	55.6	22.2	M14	UC211	FA211	3.11
UCFA212	60	240	202	29	20	48	19	140	68.7	100	118	65.1	25.4	M16	UC212	FA212	3.76
UCFA213	65	250	210	30	20	50	19	155	69.7	102	122	65.1	25.4	M16	UC213	FA213	4.7

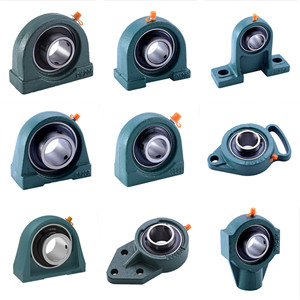

The outer spherical bearing is actually a variant of the deep groove ball bearing. At the same time, this type of bearing also has a certain self-alignment in design and is easy to install. Commonly used seats include vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), annular seat (C), slider seat, etc. ( T).
