SBPP201 SBPP202 SBPP203 SBPP204 SBPP205 SBPP206 SBPP207 SBPP208 SBPP209

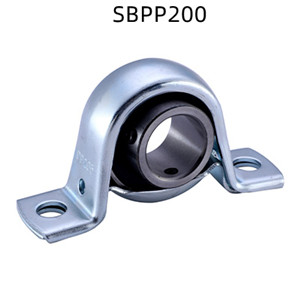

Stamped Pillow Block Bearings

PRODUCT DETAILS

SBPP201 SBPP202 SBPP203 SBPP204 SBPP205 SBPP206 SBPP207 SBPP208 SBPP209

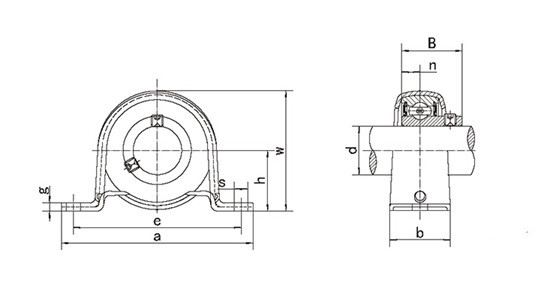

Model	Size ( mm )										Bolt mm	Bearing	Bearing housing	W.T(kg)
Model	d	h	a	e	b	s	g	w	B1	n	Bolt mm	Bearing	Bearing housing	W.T(kg)
SBPP201	12	22.2	86	68	25	9.5	3.2	43.8	22	6	M8	SB201	PP203	0.14
SBPP202	15	22.2	86	68	25	9.5	3.2	43.8	22	6	M8	SB202	PP203	0.14
SBPP203	17	22.2	86	68	25	9.5	3.2	43.8	22	6	M8	SB203	PP203	0.14
SBPP204	20	25.4	98	76	32	9.5	3.2	50.5	25	7	M8	SB204	PP204	0.22
SBPP205	25	28.6	108	86	32	11.5	4	56.6	27	7.5	M10	SB205	PP205	0.28
SBPP206	30	33.3	117	95	38	11.5	4	66.3	30	8	M10	SB206	PP206	0.42
SBPP207	35	39.7	129	106	42	11.5	4.6	78	32	8.5	M10	SB207	PP207	0.63
SBPP208	40	43.7	148	120	43	13	5	86.2	34	9	M12	SB208	PP208	0.76
SBPP209	45	46.8	156	128	45	13	6	92.3	41.2	10.2	M12	SB209	PP209	1.02

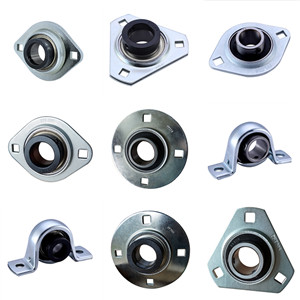

The outer spherical bearing is actually a variant of the deep groove ball bearing. At the same time, this type of bearing also has a certain self-alignment in design and is easy to install. Commonly used seats include vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), annular seat (C), slider seat, etc. ( T).
