SAPP201 SAPP202 SAPP203 SAPP204 SAPP205 SAPP206 SAPP207 SAPP208 SAPP209

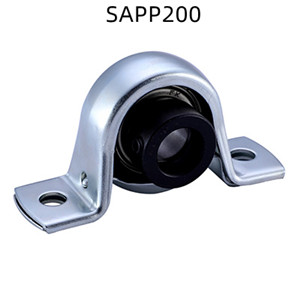

Stamped Pillow Block Bearings

PRODUCT DETAILS

SAPP201 SAPP202 SAPP203 SAPP204 SAPP205 SAPP206 SAPP207 SAPP208 SAPP209

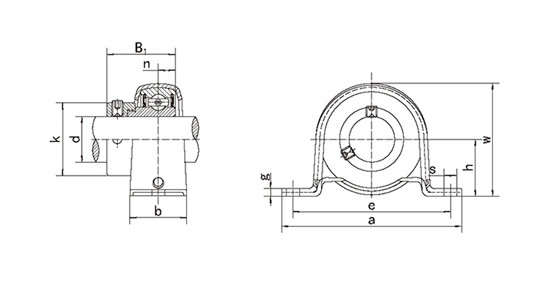

Model	Size ( mm )										Bolt mm	Bearing	Bearing housing	W.T(kg)
Model	d	h	a	e	b	s	g	w	B1	n	Bolt mm	Bearing	Bearing housing	W.T(kg)
SAPP201	12	22.2	86	68	25	9.5	3.2	43.8	28.6	6.5	5/16	SA201	PP203	0.17
SAPP202	15	22.2	86	68	25	9.5	3.2	43.8	28.6	6.5	M8	SA202	PP203	0.17
SAPP203	17	22.2	86	68	25	9.5	3.2	43.8	28.6	6.5	M8	SA203	PP203	0.17
SAPP204	20	25.4	98	76	32	9.5	3.2	50.5	31	7.5	M8	SA204	PP204	0.25
SAPP205	25	28.6	108	86	32	11.5	4	56.6	31	7.5	M10	SA205	PP205	0.32
SAPP206	30	33.3	117	95	38	11.5	4	66.3	35.7	9	M10	SA206	PP206	0.47
SAPP207	35	39.7	129	106	42	11.5	4.6	78	38.9	9.5	M10	SA207	PP207	0.76
SAPP208	40	43.7	148	120	43	13	5	86.2	43.7	11	M12	SA208	PP208	0.92
SAPP209	45	46.8	156	128	45	13	6	92.3	43.7	11	M12	SA209	PP209	1.09

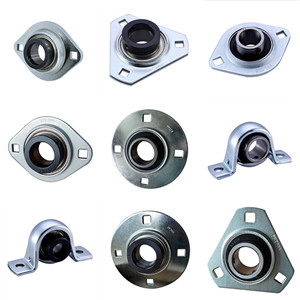

The outer spherical bearing is actually a variant of the deep groove ball bearing. At the same time, this type of bearing also has a certain self-alignment in design and is easy to install. Commonly used seats include vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), annular seat (C), slider seat, etc. ( T).
