UC201 UC202 UC203 UC204 UC205 UC206 UC207 UC208 UC209 UC210 UC211 UC212 UC213 UC214 UC215 UC216 UC217 UC218 UC220

Spherical Bearings

PRODUCT DETAILS

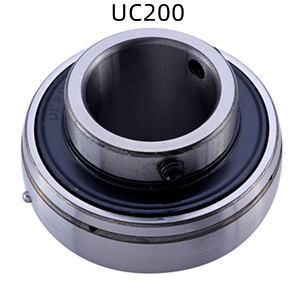

UC201 UC202 UC203 UC204 UC205 UC206 UC207 UC208 UC209 UC210 UC211 UC212 UC213 UC214 UC215 UC216 UC217 UC218 UC220

Bearing	Size(mm/in.)									W.T(kg)
Bearing	d	D	B	C	S	S1	G	ds	F	W.T(kg)
UC201	12	47	31	17	12.7	18.3	4.8	M6x1	3.7	0.2
UC202	15	1.8504	1.2205	0.6693	0.5	0.72	0.189	1/4-28UNF	0.146	0.19
UC203	17	1.8504	1.2205	0.6693	0.5	0.72	0.189	1/4-28UNF	0.146	0.18
UC204	20	47	31	17	12.7	18.3	4.8	M6x1	3.7	0.16
UC205	25	52	34.1	17	14.3	19.8	5	M6x1	3.9	0.19
UC206	30	62	38.1	19	15.9	22.2	5	M6x1	5	0.3
UC207	35	72	42.9	20	17.5	25.4	7	M8x1	5.7	0.45
UC208	40	80	49.2	21	19	30.2	8	M8x1	6.2	0.6
UC209	45	85	49.2	22	19	30.2	8	M8x1	6.4	0.65
UC210	50	90	51.6	24	19	32.6	10	M10x1	6.5	0.75
UC211	55	100	55.6	25	22.2	33.4	10	M10x1	7	0.99
UC212	60	110	65.1	27	25.4	39.7	10	M10x1	7.6	1.391
UC213	65	120	65.1	28	25.4	39.7	10	M10x1	8.5	1.7
UC214	70	125	74.6	29	30.2	44.4	12	M12x1.5	8.9	1.94
UC215	75	130	77.8	30	33.3	44.5	12	M12x1.5	9.2	2.16
UC216	80	140	82.6	32	33.3	49.3	12	M12x1.5	9.5	2.65
UC217	85	150	85.7	34	34.1	51.6	12	M12x1.5	10.2	3.29
UC218	90	160	96	36	39.7	56.3	12	M12x1.5	11.2	4.04
UC220	100	180	108	40	42	66	16	M14x1.5	13.1	4.56

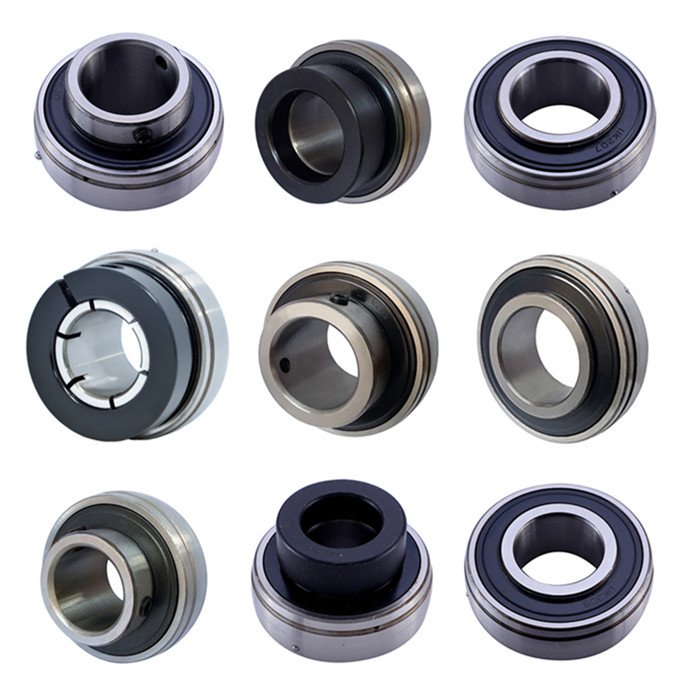

The outer spherical bearing is actually a variant of the deep groove ball bearing. At the same time, this type of bearing also has a certain self-alignment in design and is easy to install. Commonly used seats include vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), annular seat (C), slider seat, etc. ( T).
