Bearing

UK205;H2305 UK206;H2306 UK207;H2307 UK208;H2308 UK209;H2309 UK210;H2310

Spherical Bearings

PRODUCT DETAILS

UK205;H2305 UK206;H2306 UK207;H2307 UK208;H2308 UK209;H2309 UK210;H2310

轴承型号	尺寸 (mm/in.)									重量 (kg)

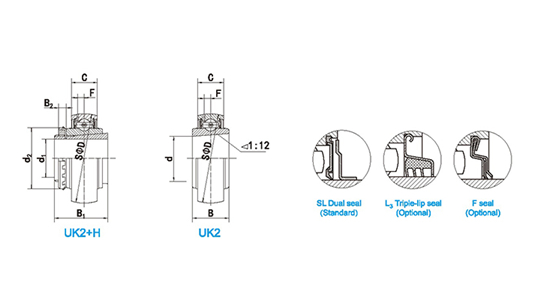

轴承型号	d1	d	D	B	C	B1	B2	ds	F	重量 (kg)
UK205;H2305	20	25	52	23	17	35	8	38	3.9	0.24
UK206;H2306	25	30	62	26	19	38	8	45	5	0.36
UK207;H2307	30	35	72	29	20	43	9	52	5.7	0.52
UK208;H2308	35	40	80	31	21	46	10	58	6.2	0.67
UK209;H2309	40	45	85	31	22	50	11	65	6.4	0.77
UK210;H2310	45	50	90	32	24	55	12	70	6.5	0.92

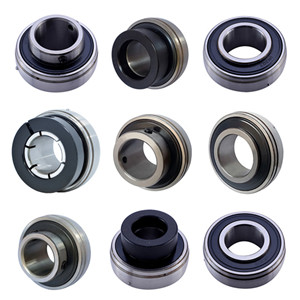

The outer spherical bearing is actually a variant of the deep groove ball bearing. At the same time, this type of bearing also has a certain self-alignment in design and is easy to install. Commonly used seats include vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), annular seat (C), slider seat, etc. ( T).
